DS-2DE3304W-DE
DS-2DE3304W-DE Original price was: $215.00.Current price is: $204.25.
Back to products
DS-8600NI-K8
DS-8600NI-K8 $0.00

DS-7316HUHI-K4

Original price was: $447.95.Current price is: $425.55.

Model: DS-7316HUHI-K4 – Hikvision TVI DVR
Details: 16-ch 1080p@25fps(Real-Time), 8MP@8fps, 5MP@12fps, 4MP@15fps, 3MP@18fps, Video output: VGA & 2*HDMI Audio I/O: 4 In/ 1 Out Alarm I/O: 16 In/ 4 Out, 32 IP Cam Input, 4 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-7316HUHI-K4 Categories: , , ,
Description

DS-7316HUHI-K4 Overview

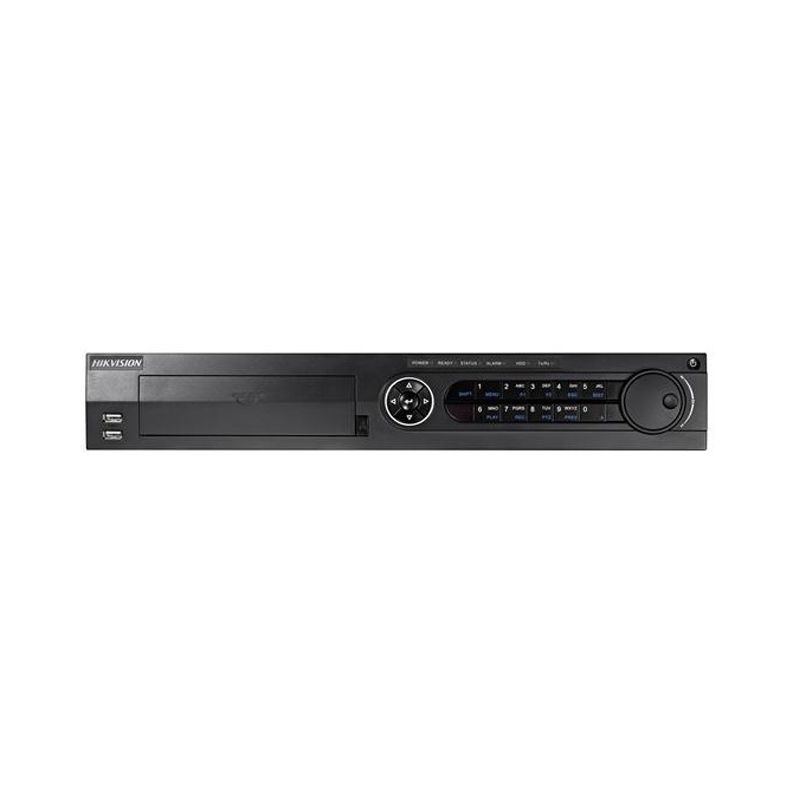

Quick Specs Figure 1 shows the appearance of DS-7316HUHI-K4.

Table 1 shows the Quick Specs.

Audio Input 4-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30HzSupport CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30support CVBS input
Audio Compression G.711u
Audio Input Interface 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
HDMI2 Output 1-ch,4K(3840 Ă— 2160)/30Hz,2K(2560 Ă— 1440)/60Hz,1920Ă—1080/60Hz,1280 Ă— 1024/60Hz,1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
HDMI/VGA Output 1920 Ă— 1080 / 60 Hz,1280 Ă— 1024 / 60 Hz, 1280 Ă— 720 / 60 Hz, 1024 Ă— 768 / 60 Hz
Recording resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-10 Mbps
Stream Type Video/Video & Audio
Audio Output 2-ch, RCA (Linear, 1 kΩ)
Dual Stream Support
Playback Resolution 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback 16-ch
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP
Interface Type 4 SATA Interfaces
Capacity Up to 10 TB capacity for each disk
Network Interface
USB Interface 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface 1 RS-232 serial interface1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input 16-ch
Alarm Output 4-ch
Power Supply 100 to 240 VAC
Consumption ≤ 65W(without hard disks)
Working Temperature -10 ℃ to +55 ℃  (+14 ℉ to +131 ℉)
Working Humidity 10% to 90%
Dimensions 445 Ă— 390 Ă— 70 mm (17.5 Ă— 15.4 Ă— 2.8 inch)

Get more information
Do you have any question about the DS-7316HUHI-K4?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Hikvision certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
