EX2300-24P
Model: EX2300-24P – Juniper EX2300 Series Ethernet Switches
Details: EX2300 24-port 10/100/1000BaseT PoE+, 4 x 1/10G SFP/SFP+ (optics sold separately)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
EX2300-24P Overview

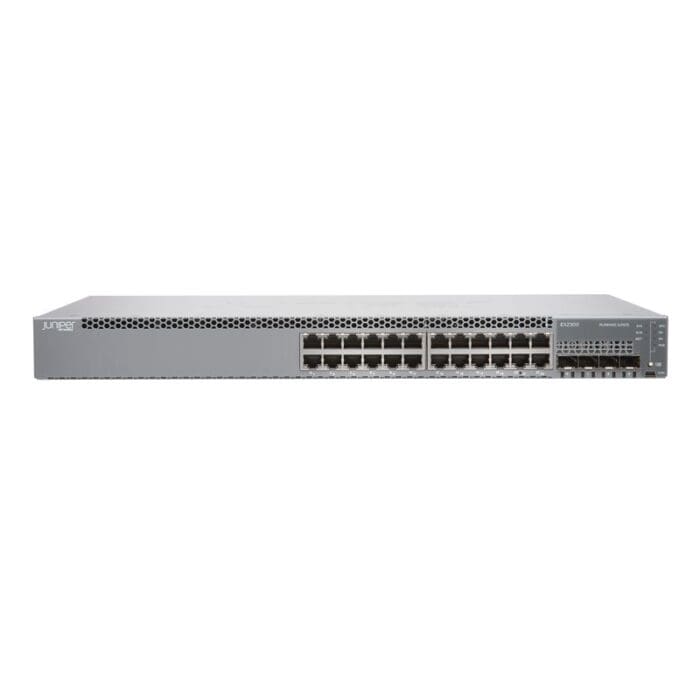

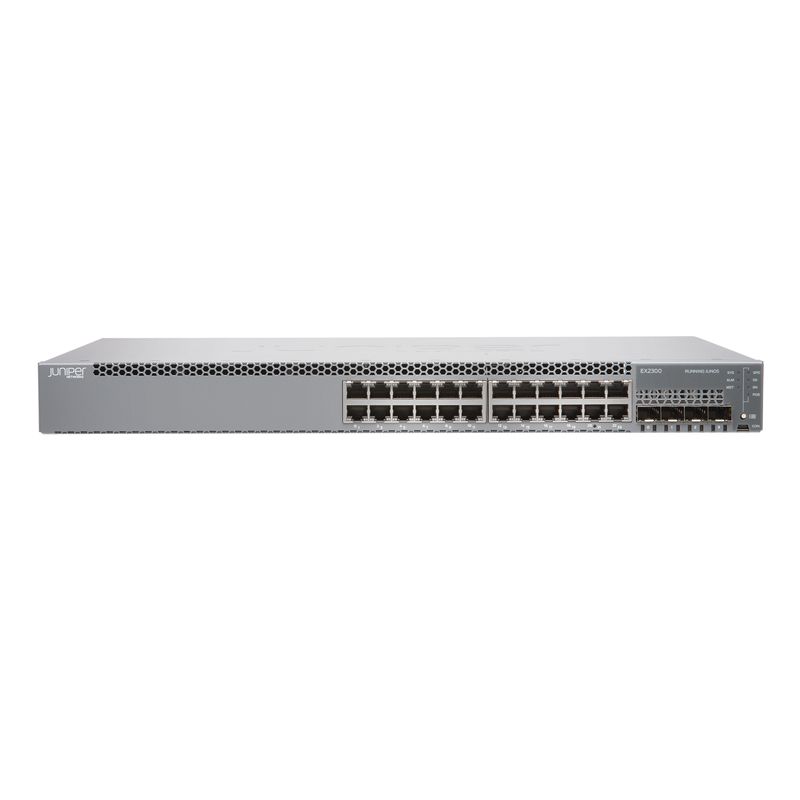

Quick Specs Figure 1 shows the appearance of EX2300-24P.
Table 1 shows the Quick Specs.
| Form factor | Fixed platformVirtual Chassis configuration consisting of up to four switchesJunos Fusion Enterprise Satellite device |
| Ports | 24-port 10/100/1000BASE-T PoE+, 4 x 1/10GbE SFP/SFP+ (optics sold separately) |
| Dimensions (W x H x D) | 17.4 x 1.75 x 10.2 in (44.19 x 4.45 x 25.9 cm)1 rack unit |
| Backplane speed | 80 Gbps |
| Data rate | 128 Gbps |
| Throughput | 95 Mpps (wire speed) |
| 10/100/1000BASE-T port densities | N/A |
| 10GBASE-X port densities | N/A |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities | N/A |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities | N/A |
| Resiliency | Integrated power supply and fans |
| Operating system | Junos OS |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 |
| MAC addresses | 16,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast / multicast routes | 4096 / 2048 |
| IPv6 unicast / multicast routes | 2048 / 1024 |
| Number of VLANs | 4093 |
| ARP entries | 1500 |
