-5%
FG-1100E
Model: FG-1100E – Fortinet FortiGate NGFW High-end Series
Details: Fortinet FortiGate 1100E FG-1100E, 2x 40GE QSFP+ slots , 4x 25GE SFP28 slots, 4x 10GE SFP+ slots, 8x GE SFP slots, 18x GE RJ45 ports (including 16x ports, 2x management/HA ports) SPU NP6 and CP9 hardware accelerated, and 2 AC power supplies
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FG-1100E Overview

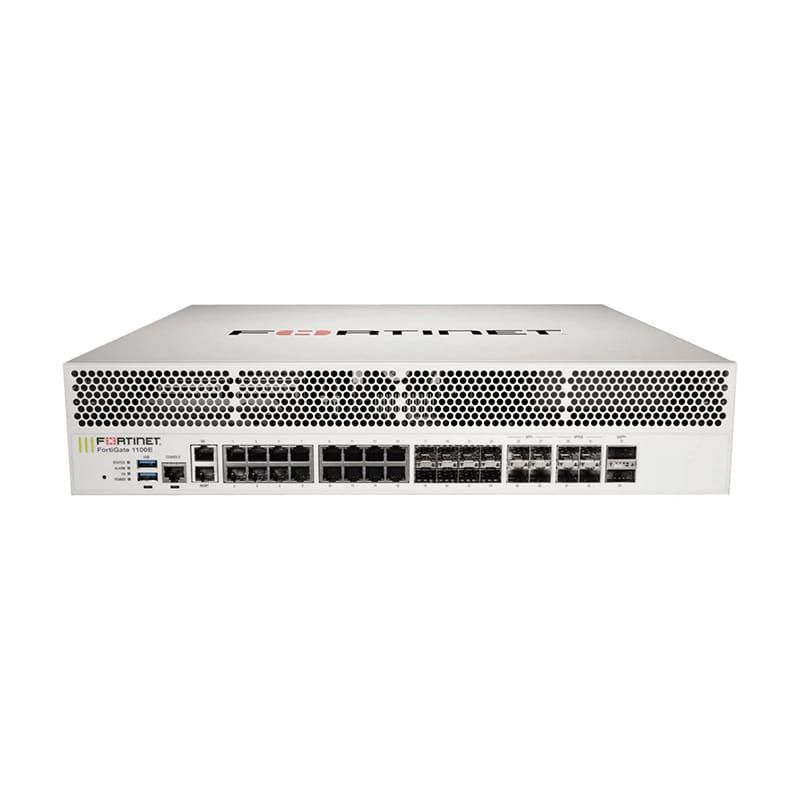

Quick Specs Figure 1 shows the appearance of FG-1100E.
Table 1 shows the Quick Specs.
| Hardware Accelerated 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 0 |
| Included Transceivers | 2x SFP (SX 1 GE) |
| IPS Throughput2 | 12.5 Gbps |
| NGFW Throughput2, 4 | 9.8 Gbps |
| Threat Protection Throughput2, 5 | 7.11 Gbps |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 45 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 45 Gbps |
| Firewall Latency (64 byte, UDP) | 2.76μs |
| Firewall Throughput (Packet per Second) | 67.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte)1 | 48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS)3 | 10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 6,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 780,000 |
| Application Control Throughput (HTTP 64K)2 | 26 Gbps |
| CAPWAP Throughput (HTTP 64K) | 43 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 3.5 x 17.44 x 17.62 |
| Height x Width x Length (mm) | 88.9 x 443 x 447.4 |
| Weight | 24.9 lbs (11.3kg) |
| Form Factor (supports EIA/ non-EIA standards | Rack Mount, 2 RU |
| AC Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 217 W / 336 W |
| AC Current (Maximum) | 6A@120V, 3A@240V |
| Heat Dissipation | 1,147 BTU/h |
| DC Power Input (FG-1100E-DC) | -48V DC |
| DC Current (Maximum) | 11.5A |
| Redundant Power Supplies | Yes, Hot swappable |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 66.7 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
