FS-124E
Model: FS-124E – Fortinet FortiSwitch 100 Series
Details: L2 Switch – 24 x GE RJ45 ports, 4 x GE SFP slots, Fanless, FortiGate switch controller compatible
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
FS-124E Overview

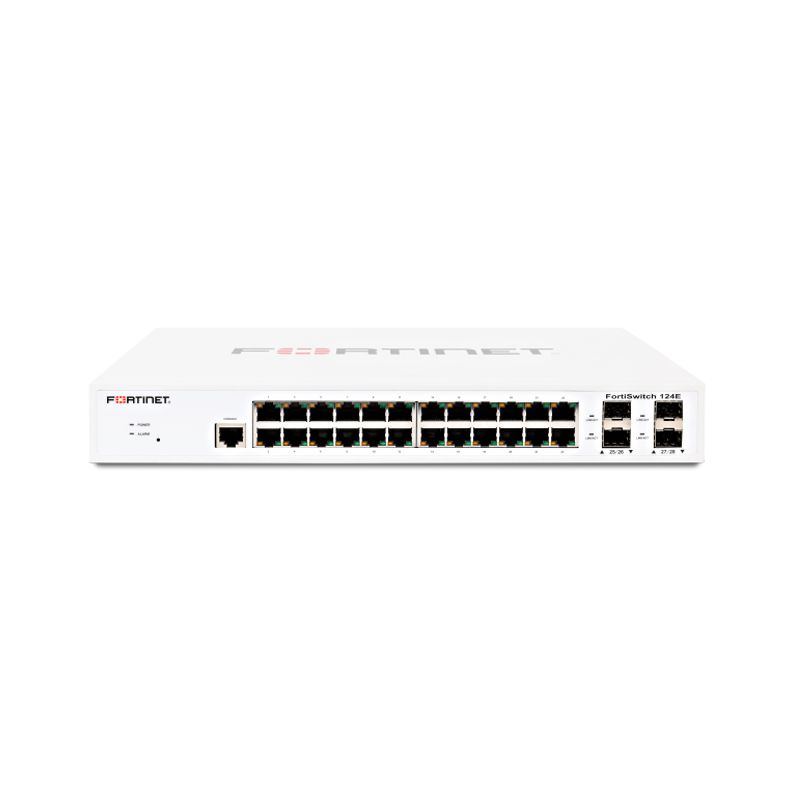

Quick Specs Figure 1 shows the appearance of FS-124E.
Table 1 shows the Quick Specs.
| Total Network Interfaces | 24x GE RJ45 and 4x GE SFP |
| Dedicated Management 10/100 Port | 0 |
| RJ-45 Serial Console Port | 1 |
| Form Factor | 1 RU Rack Mount |
| Power over Ethernet (PoE) Ports | 0 |
| PoE Power Budget | 0 |
| Mean Time Between Failures | > 10 years |
| Switching Capacity (Duplex) | 56 Gbps |
| Packets Per Second (Duplex) | 83 Mpps |
| MAC Address Storage | 8 K |
| Network Latency | 4µs |
| VLANs Supported | 4 K |
| Link Aggregation Group Size | 8 |
| Total Link Aggregation Groups | 8 |
| Packet Buffers | 512 KB |
| DRAM | 256 MB DDR3 |
| FLASH | 32 MB |
| Height x Depth x Width (inches) | 1.7 x 8.2 x 13 |
| Height x Depth x Width (mm) | 44 x 209 x 330 |
| Power Required | 100–240V AC, 50–60 Hz |
| Power Supply | AC Built in |
| Redundant Power | — |
| Power Consumption (Average / Maximum) | 15.83 W /17.79 W |
| Heat Dissipation | 54 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -40–158°F (-40–70°C) |
| Humidity | 10–90% non-condensing |
