FS-224E-POE

Original price was: $780.00.Current price is: $741.00.

Model: FS-224E-POE – Fortinet FortiSwitch 200 Series
Details: FS-224E-POE deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: FS-224E-POE Categories: , ,
Description

FS-224E-POE Overview

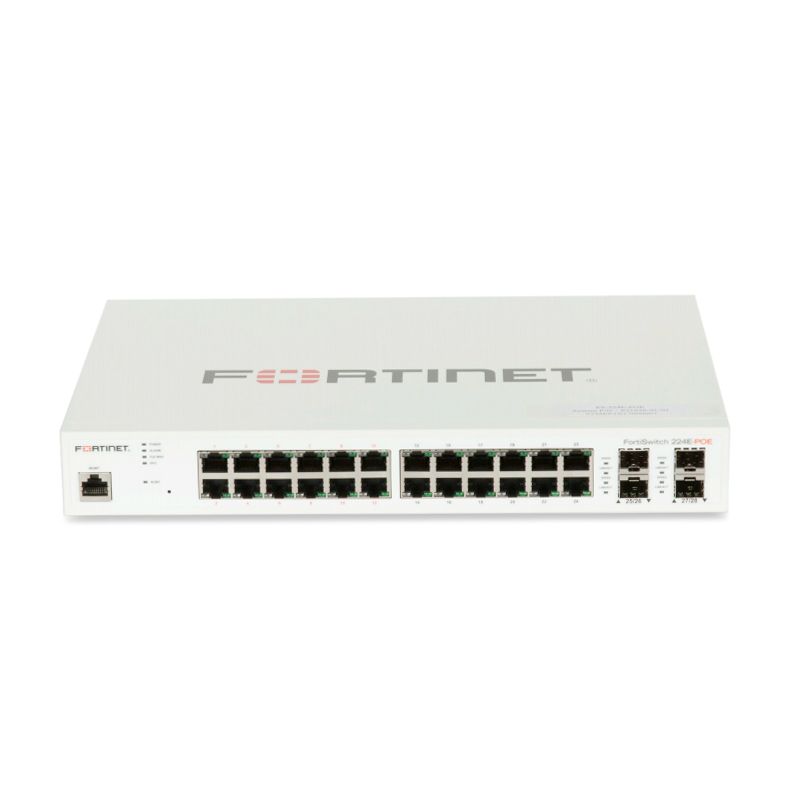

Quick Specs Figure 1 shows the appearance of FS-224E-POE.

Table 1 shows the Quick Specs.

Total Network Interfaces 24x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100 Port 1
RJ-45 Serial Console Port 1
Form Factor 1 RU Rack Mount
Power over Ethernet (PoE) Ports 12 (802.3af/802.3at)
PoE Power Budget 180 W
Mean Time Between Failures > 10 years
Switching Capacity (Duplex) 56 Gbps
Packets Per Second (Duplex) 83 Mpps
MAC Address Storage 16 K
Network Latency < 1µs
VLANs Supported 4 K
Link Aggregation Group Size 8
Total Link Aggregation Groups Up to number of ports
Packet Buffers 1.5 MB
DRAM 512 MB
FLASH 128 MB
Height x Depth x Width (inches) 1.73 x 9 x 12.99
Height x Depth x Width (mm) 44 x 230 x 330
Power Required 100–240V AC, 50–60 Hz
Power Supply AC Built in
Redundant Power Optional FRPS-740
Power Consumption (Average / Maximum) 220.18 W / 223.57 W
Heat Dissipation 74.29554 BTU/h
Operating Temperature 32–122°F (0–50°C)
Storage Temperature -4–158°F (-20–70°C)
Humidity 10–90% non-condensing

Get more information
Do you have any question about the FS-224E-POE?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Fortinet certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
