HPE P15968-B21 Intel Xeon-Bronze 3206R
Model: P15968-B21 – HPE DL360 Gen10 Server Processor
Details: HPE P15968-B21 Intel Xeon-Bronze 3206R (1.9GHz/8-core/85W) FIO Processor Kit for HPE ProLiant DL360 Gen10 S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
HPE P15968-B21 Intel Xeon-Bronze 3206R Overview

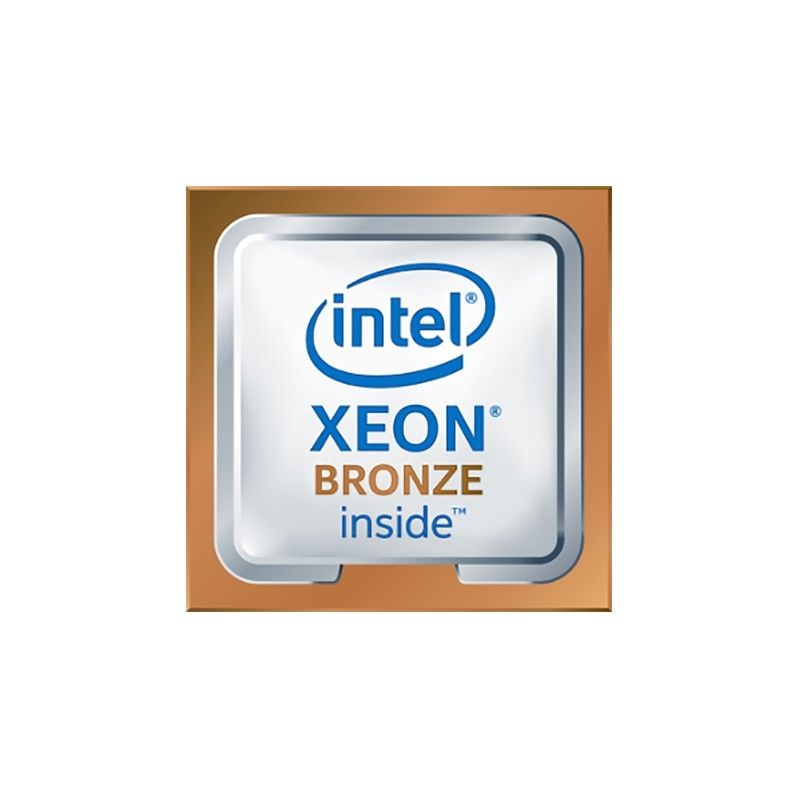

Quick Specs Figure 1 shows the appearance of HPE P15968-B21 Intel Xeon-Bronze 3206R.
Table 1 shows the Quick Specs.
| Product Name | Intel Xeon-Bronze 3206R |
| Part Number | P15968-B21 |
| Designed for | HPE DL360 Gen10 Server |
| Product Collection | 2nd Generation Intel Xeon Scalable Processors |
| Code Name | Products formerly Cascade Lake |
| Vertical Segment | Server |
| Processor Number | 3206R |
| Status | Launched |
| Launch Date | Q1’20 |
| Lithography | 14 nm |
| # of Cores | 8 |
| # of Threads | 8 |
| Processor Base Frequency | 1.90 GHz |
| Max Turbo Frequency | 1.90 GHz |
| Cache | 11 MB |
| # of UPI Links | 2 |
| TDP | 85 W |
| Embedded Options Available | No |
| Max Memory Size (dependent on memory type) | 1 TB |
| Memory Types | DDR4-2133 |
| Maximum Memory Speed | 2133 MHz |
| Max # of Memory Channels | 6 |
| ECC Memory Supported | Yes |
| Intel Optane Persistent Memory Supported | No |
| Scalability | 2S |
| PCI Express Revision | 3 |
| Max # of PCI Express Lanes | 48 |
| Sockets Supported | FCLGA3647 |
| TCASE | 78°C |
| Package Size | 76.0mm x 56.5mm |
| Intel Deep Learning Boost (Intel DL Boost) | Yes |
| Intel Speed Select Technology – Performance Profile | No |
| Intel Speed Select Technology – Base Frequency | No |
| Intel Resource Director Technology (Intel RDT) | Yes |
| Intel Speed Shift Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel Turbo Boost Technology | No |
| Intel vPro Platform Eligibility | Yes |
| Intel Hyper-Threading Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Transactional Synchronization Extensions | Yes |
| Intel 64 | Yes |
| Instruction Set Extensions | Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512 |
| # of AVX-512 FMA Units | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Volume Management Device (VMD) | Yes |
| Intel AES New Instructions | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Run Sure Technology | No |
| Mode-based Execute Control (MBE) | Yes |
