Huawei SFP-10G-LR
Model: Huawei Optical Transceiver SFP-10G-LR ,SFP+,10G,Single-mode Module(1310nm,10km,LC)
Details: Huawei Optical Transceiver SFP-10G-LR ,SFP+,10G,Single-mode Module(1310nm,10km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
Huawei SFP-10G-LR Overview

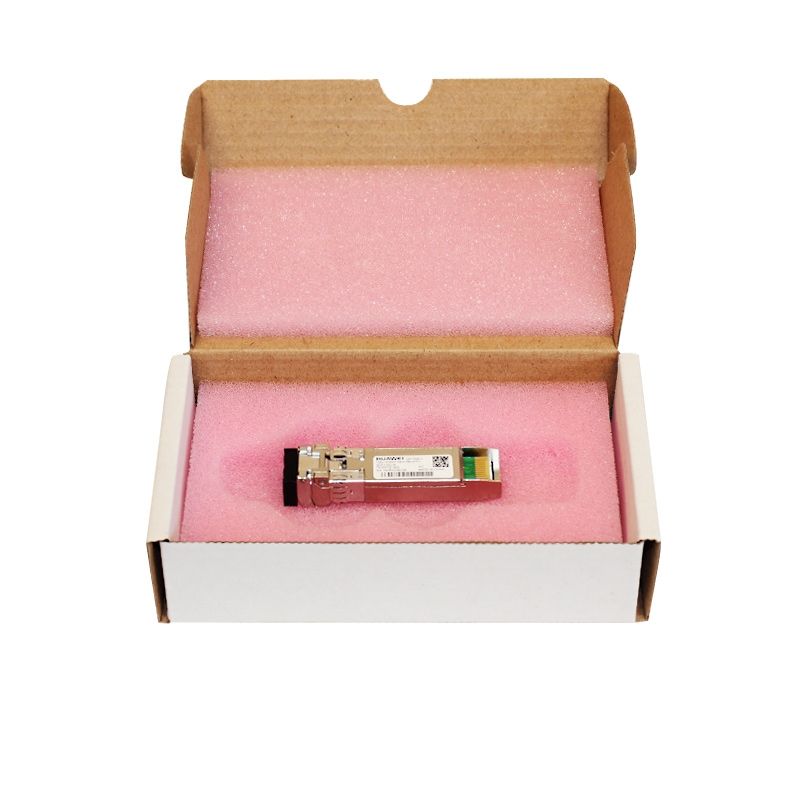

Quick Specs Figure 1 shows the appearance of Huawei SFP-10G-LR.
Table 1 shows the Quick Specs.
| Item | Description |
| Version support | Supported in V100R001C00 and later versions |
| Transceiver form factor | SFP+ |
| Transmission speed | 10GE |
| Center wavelength (nm) | 1310 |
| Standards compliance | 10GBASE-LR |
| Connector type | LC |
| Type of the end face of the fiber ceramic ferrule | PC or UPC |
| Applicable cable and maximum transmission distance | Single-mode fiber (G.652) (with diameter of 9 μm): 10 km |
| Modal bandwidth | – |
| Transmit power (dBm) | -8.2 to +0.5 |
| Maximum receiver sensitivity (dBm) | -12.6 |
| Overload power (dBm) | 0.5 |
| Extinction ratio (dB) | ≥ 3.5 |
| Operating temperature | 0°C to 70°C |
