Sold out
Inspur AS13000-M12
Model: Inspur AS13000-M12 – Inspur Storages
Details: Inspur AS13000-M12 distributed storage system, 2U12, 32GB (recommended) memory, AC: 90 ~ 264V, or DC: 200V-300V, 1 + 1 power supply redundancy
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
Inspur AS13000-M12 Overview

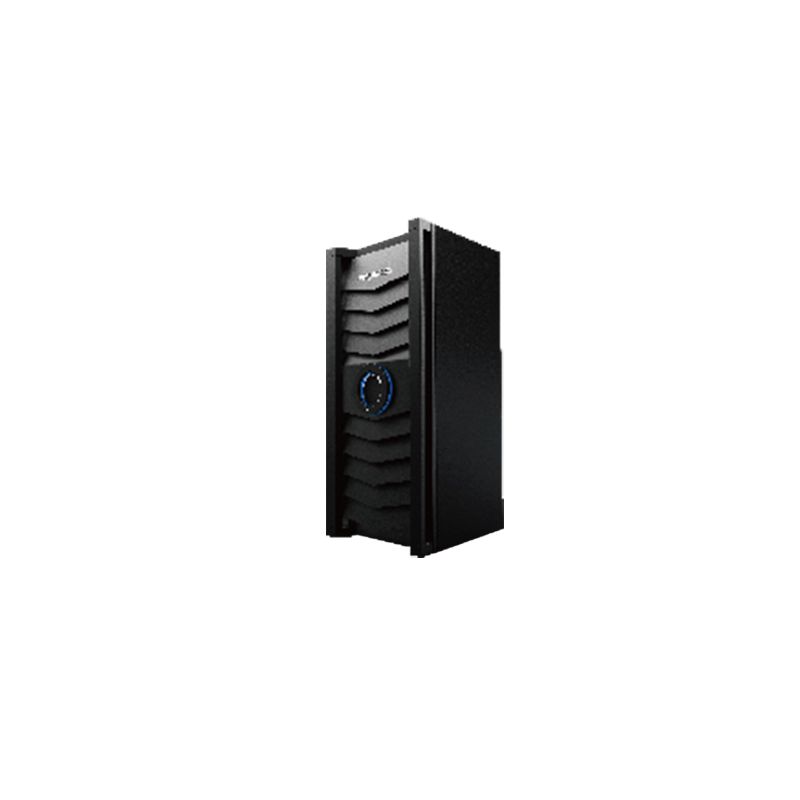

Quick Specs Figure 1 shows the appearance of Inspur AS13000-M12.
Table 1 shows the Quick Specs.
| Type of nodes | (2U12) |
| Independent R&D | Distributed storage system with independent intellectual property rights |
| Network | External shared network: 1Gb/10Gb/25Gb/40Gb Ethernet or 40Gb/56Gb/100Gb InfiniBand |
| System architecture | Fully symmetric distributed architecture |
| Scalability | Node: 3~5120 nodes,Capacity:36TB~5160PB |
| Data redundancy protection | Erasure coding(N+1,N+2,N+3,N+4), Copy(2-8 copies) |
| Data recovery | Data recovery rate up to 2TB/h |
| Height | 2U |
| Size | W(width)447mm; H(height)87mm; D(depth)779.8mm |
| Power Supply | AC: 90 ~ 264V,or DC：200V-300V， 1 + 1 power supply redundancy |
| CPU | 2×Intel 4(5,6,8)XXXX |
| Memory | 32GB (recommended) |
| Power failure protection memory | 16GB NVDIMM |
| Hard disk of the operation system | 2 SAS/SATA 2.5” (RAID1) |
| Supported hard disk types | SSD, SAS, SATA |
| Weight | Gross weight: 39 kg (full configuration of 12 disk positions). (Gross weight includes: Host + packing-case + rail + accessory box) |
| Switching unit | 10GE，25GE,40GEswitch |
| Quota management | Support directory quota, user quota and user group quota |
| Streamlined configuration | Supported |
| ACL | Supported |
| Multi-protocol sharing | File system supports multi-protocol (CIFS/NFS/FTP/HTTP) sharing |
| NAS protocol support | SMB 1.0/2.0/3.0, NFS V3/V4, FTP, HDFS, HTTP |
| NFS | Support automatic fail over and automatic recovery; can be combined with NIS domain and LDAP domain to achieve permission control |
| CIFS | Support automatic IP switch and automatic recovery when a failure happens (if the application supports retry mechanism); can be combined with AD domain to achieve permission control |
| NFS/CIFS HA | High availability of external protocol |
| Management of CIFS Shared Rights | Assign read and write permissions for CIFS sharing to local user/user group/domain users |
| WORM | Supported |
| Access audit | NFS/CIFS access audit supported |
| Transparent fail-over | Supported |
| Dynamic storage tiering | Supported |
| Balanced client-connected load | Supported |
| Automatic capacity balancing | Supported |
| Recycle bin | Supported |
| Asynchronous remote replication | Supported |
| Online capacity expansion of file system | Supported |
| Client API | Support Linux private client mounting |
| SNMP | Supported |
| Supported domain | AD domain, NIS domain, LDAP domain |
| IPSAN | Block storage interface, snapshot, cloning |
| Amount of file system | Single namespace |
| File system size | Up to 1024PB |
| Maximum files in a single directory | 20 million |
| Maximum file and object size | File:128TB,Object:48.8TB |
| Block size | Default block size is 4MB,can be adjusted to 1MB,2MB,4MB,8MB,16MB |
| Cache acceleration | Supported |
| Server SAN | Hyper-Converged deployment form |
| S3 object protocol | Supported |
| Swift object protocol | Supported |
| HDFS API | Hadoop big data analysis interface |
| RDMA | InfiniBand RDMA mechanism |
| Hard disk mis-unplug prevention | If the hard disk is mis-unplugged, plug it back in 5 minutes, then it can continue to be used as a data hard drive |
| User password management | Supported |
| Operation log management | Operation log can be queried and sorted in the interface |
| Log management | Log compression |
| Log collection | Supported |
| Alarm management | Alarm report |
| Alarm export | Supported |
| Alarm sequence | Supported |
| Alarm clear | Supported |
| Alarm filtering | Supported |
| Event report | Supported |
| System pre-installation | Supported |
| Management mode | Support graphic interface management |
| Management interface | Support CLI management mode |
| Alarm method | Support Alarm method like SNMP and Syslog |
| Compatibility list | For detailed information, please see the compatibility list |
| Operating temperature | 5℃-35℃ (-60m~1800m); at an altitude of 1800m ~ 3000m, the temperature decreased by 0.6℃ for each 100m decreased |
| Storing temperature | -40℃ to +70℃ |
| Operating humidity | 20%~80%R.H. |
| Highest operating altitude | -30.5m ~3000m; |
| Noise | Environmental temperature 25℃,< 72dBA |
