UDM
Model: UDM – Ubiquiti Enterprise Routers Series
Details: Ubiquiti / UBNT UniFi UDM Dual-Band Router, 1 Gigabit Ethernet, Wireless AP,Wave 2 integrated AC controller
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
UDM Overview

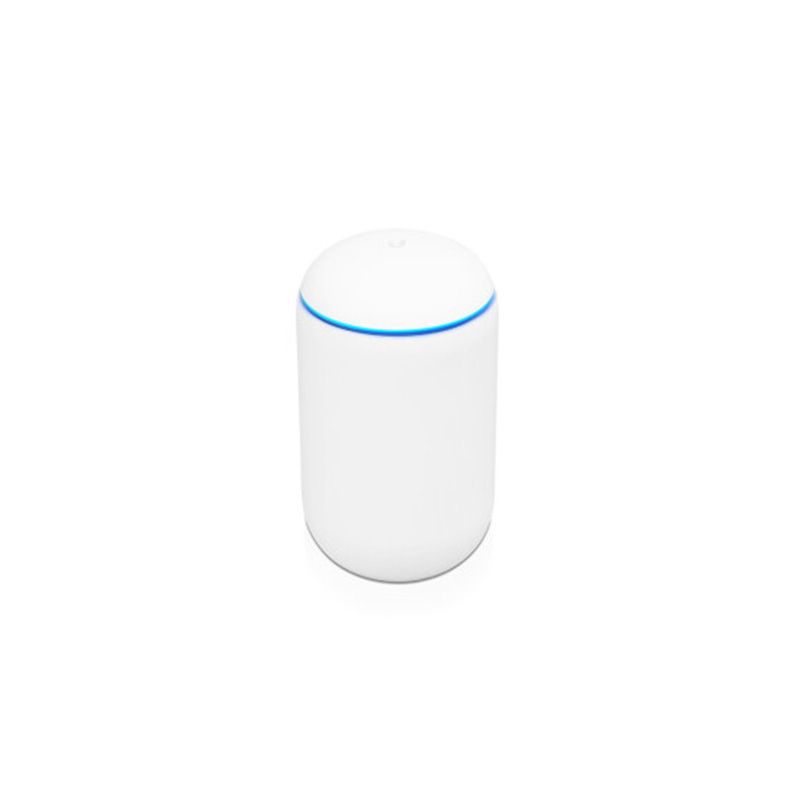

Quick Specs Figure 1 shows the appearance of UDM.
Table 1 shows the Quick Specs.
| Dimensions | Ø 110 x 184.2 mm (Ø 4.33 x 7.25″) |
| Networking Interfaces | (4) LAN 10/100/1000 RJ45 Ports(1) WAN 10/100/1000 RJ45 Port |
| Buttons | Reset |
| IDS/IPS Throughput | 850 Mbps |
| Processor | Arm Cortex-A57 Quad-Core at 1.7 GHz |
| System Memory | 2 GB DDR RAM |
| On-Board Flash Storage | 16 GB |
| Maximum Power Consumption | 26W |
| Supported Voltage Range | 100 – 240VAC |
| Power Method | AC Power Cord |
| Power Supply | Internal AC/DC Power Adapter (24V, 0.6A, 100 – 240VAC) |
| Power Save | Supported |
| Beamforming | Supported |
| TX Power*2.4 GHz5 GHz | 23 dBm26 dBm |
| Antenna | (1) Dual-Band, Quad-Polarity Antenna |
| Antenna Gain2.4 GHz5 GHz | 3 dBi4.5 dBi |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF |
| BSSID | Up to 8 per Radio |
| Operating Temperature | -10 to 45° C (14 to 113° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
