US-24-250W

Original price was: $575.00.Current price is: $546.25.

Model: US-24-250W – Ubiquiti Enterprise Switches Series
Details: Ubiquiti / UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: US-24-250W Categories: , ,
Description

US-24-250W Overview

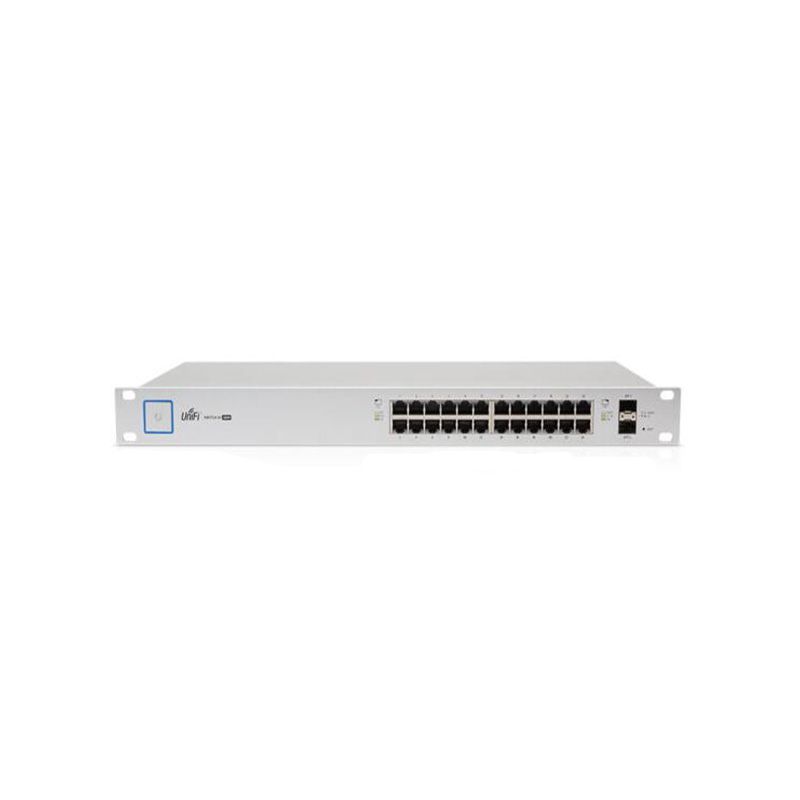

Quick Specs Figure 1 shows the appearance of US-24-250W.

Table 1 shows the Quick Specs.

Dimensions 485 x 43.7 x 285.4 mm(19.09 x 1.72 x 11.24″)
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port Out-of-Band,Ethernet In-Band
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
MAC Address Table 16384
Maximum Aggregations 6
Monitoring Sessions 1
Maximum VLANs 255
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 250W DC
Max. Power ConsumptionIncluding PoE OutputExcluding PoE Output 250W30W
LEDs Per PortRJ45 Data PortsSFP Data Ports PoE, Speed/Link/ActivitySpeed/Link/Activity
Sound LevelFan Level 0Fan Level 1Fan Level 2Fan Level 3 9.1 dBr14.2 dBr16.8 dBr21.2 dBr
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
PoE Interfaces PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)24VDC Passive PoE (Pins 4, 5+; 7, 😎
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V
