VTO2111D-WP-S1
Model: VTO2111D-WP-S1 – Dahua Other Products
Details: 1MP Wi-Fi Villa Outdoor Station;HD CMOS camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
VTO2111D-WP-S1 Overview

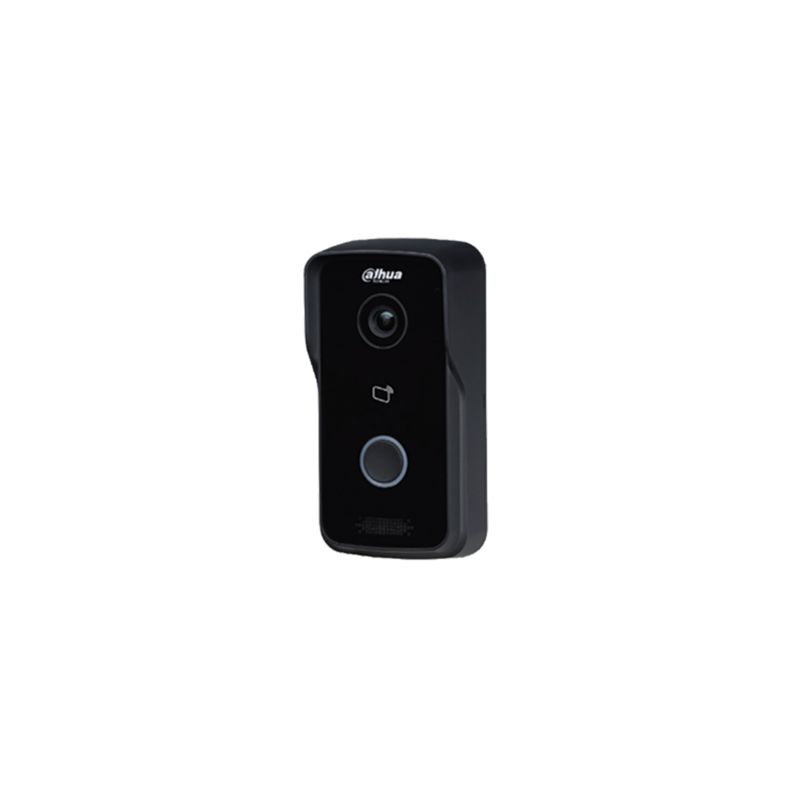

Quick Specs Figure 1 shows the appearance of VTO2111D-WP-S1.
Table 1 shows the Quick Specs.
| Main Processor | Micro Processor |
| Operation System | Embedded LINUX OS |
| Video Compression | H.264 |
| Image Sensor | 1/4″Â 1MP CMOS |
| Lens | 2.2mm |
| Angle of View | H:108°, V:81°, D:135° |
| Day/Night | ICR |
| Audio Compression | G.711 |
| Audio Input | Omnidirectional Mic |
| Audio Output | Audio Output |
| Bidirectional Talk | Support Dual-way Bidirectional talk |
| Keypad Single | Mechanical Button |
| Reader | Mifare Card |
| Body Approaching | 0.6m |
| Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
| Alarm In | 2(1ch unlock button, 1ch feedback) |
| RS485 | 1 |
| Wi-Fi | IEEE802.11b/g/n |
| Ethernet | 10M/100Mbps Self-adaptive |
| Network Protocol | TCP/IP |
| Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Tamper Switch | 1 |
| Wireless Frequency | 433MHz |
| Memory Slot | Micro SD, Max 32G |
| Installation | Surface |
| Material | Plastic |
| Power | DC 12V,PoE(802.3af) |
| Power Consumption | Work <7W |
| Working Environments | ﹣30°C to +60°C |
| Relative Humidity | 10%RH–90%RH |
| Dimensions | 135mmx70.4mmx34.4mm |
