-5%
817749-B21
Model: 817749-B21 – Networking Adapters for HPE Server
Details: HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
817749-B21 Overview

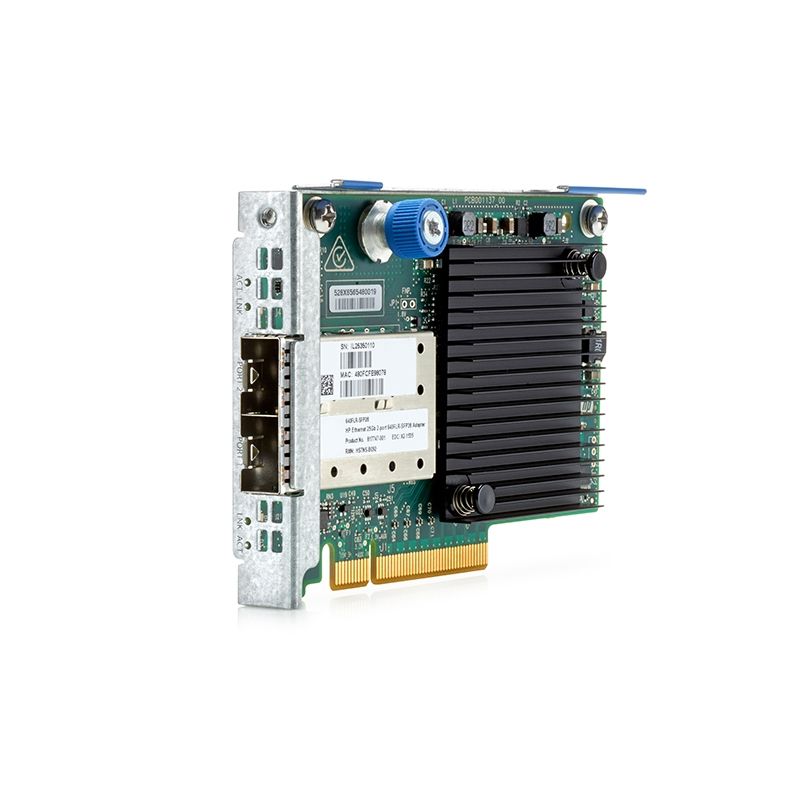

Quick Specs Figure 1 shows the appearance of 817749-B21.
Table 1 shows the Quick Specs.
| Type | 1 year warranty |
| Value | 100 Gbps |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Humidity Range Operating | 8 – 90% |
| Compatibility | PC, Unix |
| Manufacturer | Mellanox Technologies |
| Packaged Quantity | 1 |
| Product Line | HPE |
| Model | 640FLR-SFP28 |
| Brand | HPE |
| Qty | 2 |
| Connector Type | SFP28 |
| Compliant Standards | IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz,IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Form Factor | Plug-in card |
| Connectivity Technology | Wired |
| Data Transfer Rate | 25 Gbps |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Remote Management Protocol | SNMP |
| Status Indicators | Link/activity |
| Ports Qty | 2 |
| Features | Extended Message-Signaled Interrupts (MSI-X), Full duplex mode, IPv4 support, IPv6 support,Jumbo Frames support, LACP support, Large Send Offload (LSO), LLDP support,Network Virtualization using Generic Routing Encapsulation (NVGRE), PXE support,QoS tagging, Quality of Service (QoS), RDMA over Converged Ethernet (RoCE),RDMA over Converged Ethernet (RoCE) v2, Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), TCP/IP checksum offload, TCP/IP offloading, UDP/IP offloading,UEFI support, Virtual Extensible LAN (VXLAN), VLAN support |
| Interface Type | FlexibleLOM |
| PCI Specification Revision | PCIe 3.0 |
| Power Consumption Operational | 9.7 Watt |
| Installed Qty | 1 |
| Support Details Type | Limited warranty |
| Support Details Full Contract Period | 1 year |
| Min Operating System | Citrix XenServer 6.5, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2,Oracle Solaris 11.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7,Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.1, Red Hat Enterprise Linux 7.2,SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 12, Ubuntu 14.04,VMware ESXi 5.5, VMware ESXi 6.0 |
