Sold out
A42AB23
Model: A42AB23 – Dahua 4MP CVI
Details: 4MP IR 3.6mm HDCVI Mini Bullet
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
A42AB23 Overview

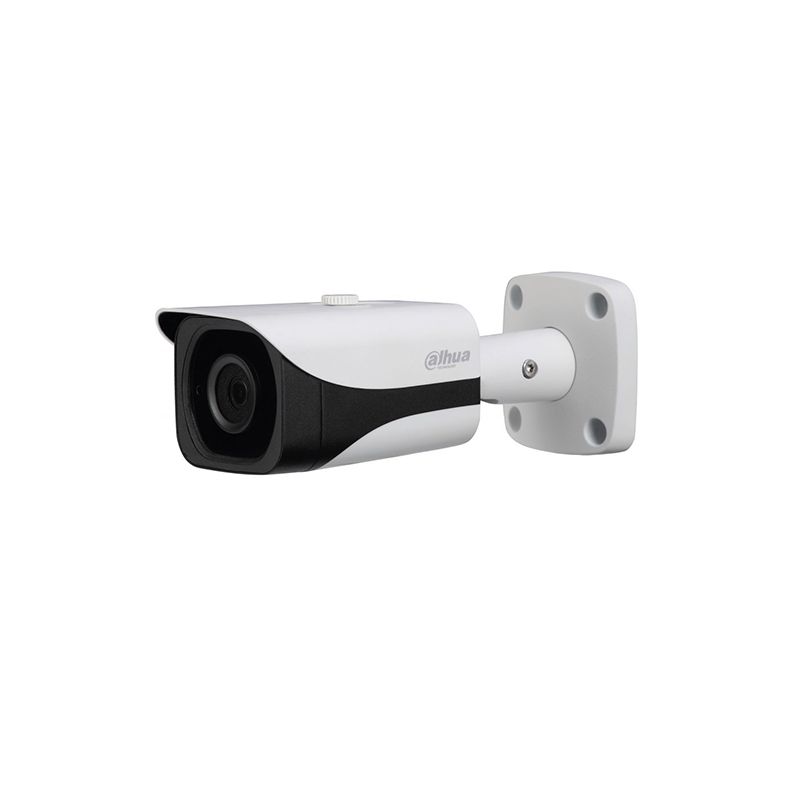

Quick Specs Figure 1 shows the appearance of A42AB23.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Model | A42AB23 |
| Image Sensor | 1/3″ CMOS |
| Effective Pixels | 2688(H) x 1520(V), 4 MP |
| Scanning System | Progressive |
| Lens | 3.6mm fixed lens |
| Angle of View | 84?? |
| IR Distance | 30 meters |
| Day/Night | ICR |
| Video Frame Rate | 25/30fps@4MP, 25/30fps@1080P |
| Video Output | 1-channel BNC HDCVI high definition video output |
| Noise Reduction | 2D |
| Ingress Protection | IP67 |
| Power Supply | DC12V |
| Power Consumption | Max 3.8W |
| Operating Temperature | -30??C to +60??C |
| Dimension | 154.3mm ?? 69.8mm ?? 69.8mm |
| Net Weight | Approx. 320g |
| Gain Control | AGC |
| Housing | Metal |
