D3020-AEI-P(2.8mm)
Model: D3020-AEI-P(2.8mm) – Huawei High-Definition IP Cameras
Details: 1 / 2.7 inch, 2.8mm fixed focus, 30m infrared light compensation, Poe, Behavior analysis: fast moving, over-line detection, area intrusion, entry / exit area Anomaly detection: occlusion detection
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
D3020-AEI-P(2.8mm) Overview

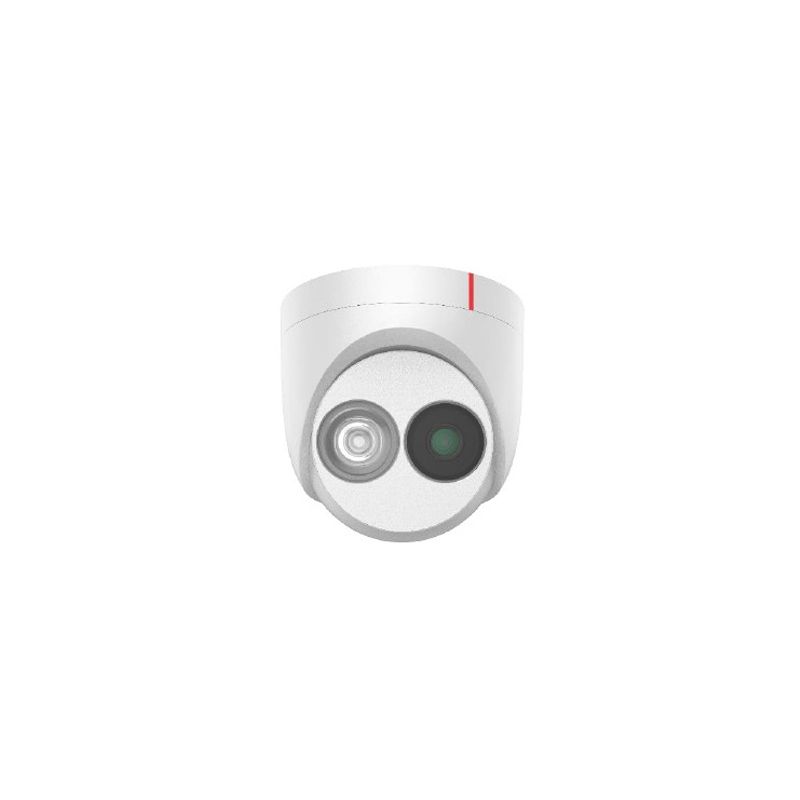

Quick Specs Figure 1 shows the appearance of D3020-AEI-P(2.8mm).
_1.png)
Table 1 shows the Quick Specs.
| Image Sensor | 1 / 2.7 inch |
| Lens | 2.8mm fixed focus |
| Infrared Light Compensation | 30m |
| Power over Ethernet (PoE) | Supported |
| Behavior Analysis | Fast moving, over-line detection, area intrusion, entry/exit area |
| Anomaly Detection | Occlusion detection |
| Resolution | Up to 1920×1080 |
| Day/Night Mode | Auto (ICR)/Color/B/W |
| Network Protocols | IPv4, IPv6, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, IEEE 802.1X, QoS, UPnP |
| Video Compression | H.264, H.265, MJPEG |
| Audio Compression | AAC, G.711, G.726 |
| Storage | Micro SD/SDHC/SDXC card slot (up to 128GB) |
| Operating Conditions | -30��C to 60��C (-22��F to 140��F), Humidity 95% or less (non-condensing) |
| Power Source | 12V DC �� 10%, PoE (802.3af) |
| Power Consumption | Max. 10 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Dimensions | 70 mm �� 70 mm �� 150 mm (2.76″ �� 2.76″ �� 5.91″) |
| Mounting Options | Wall mount, ceiling mount |
| Warranty | 3 years |
