Sold out
DH-HAC-HDBW2241FN-M
Model: DH-HAC-HDBW2241FN-M – Dahua 2MP CVI
Details: 2 MP Mobile Fixed HDCVI Wedge Camera (2.8mm)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DH-HAC-HDBW2241FN-M Overview

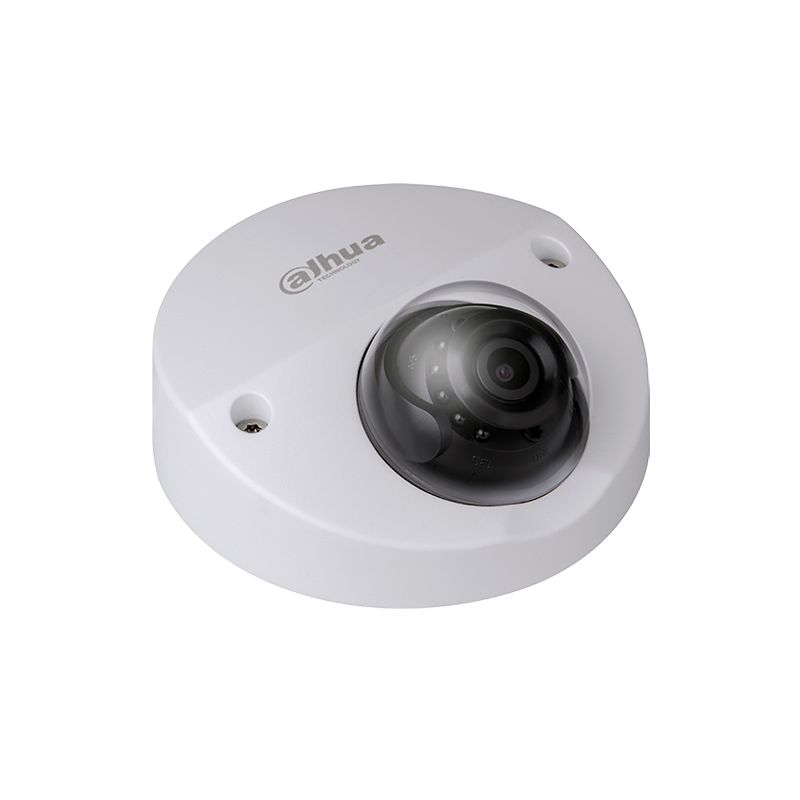

Quick Specs Figure 1 shows the appearance of DH-HAC-HDBW2241FN-M.
Table 1 shows the Quick Specs.
| Brand | Dahua |
| Product Name | DH-HAC-HDBW2241FN-M |
| Camera Type | Mobile Fixed HDCVI Wedge Camera |
| Resolution | 2 MP |
| Lens | 2.8mm |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Electronic Shutter Speed | 1/3s to 1/100,000s |
| Minimum Illumination | 0.01Lux/F1.6, 30IRE, 0Lux IR on |
| Day/Night | Auto (ICR) / Color / B/W |
| IR Distance | Up to 20m (66ft) |
| Video Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (can switch) |
| OSD Menu | Multi-language |
| Audio Interface | 1-channel |
| Power Supply | 12V DC ��30% |
| Power Consumption | Max 3.2W (12V DC, IR on) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Operating Temperature | -40��C to +60��C (-40��F to +140��F) |
| Dimension | ��106mm��49.3mm(4.17″x1.94″) |
| Net Weight | 0.32kg (0.71lb) |
