DH-TPC-BF3221-T
Model: DH-TPC-BF3221-T – Dahua Temperature Measurement Camera
Details: Dahua Thermal Network Value Hybrid Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DH-TPC-BF3221-T Overview

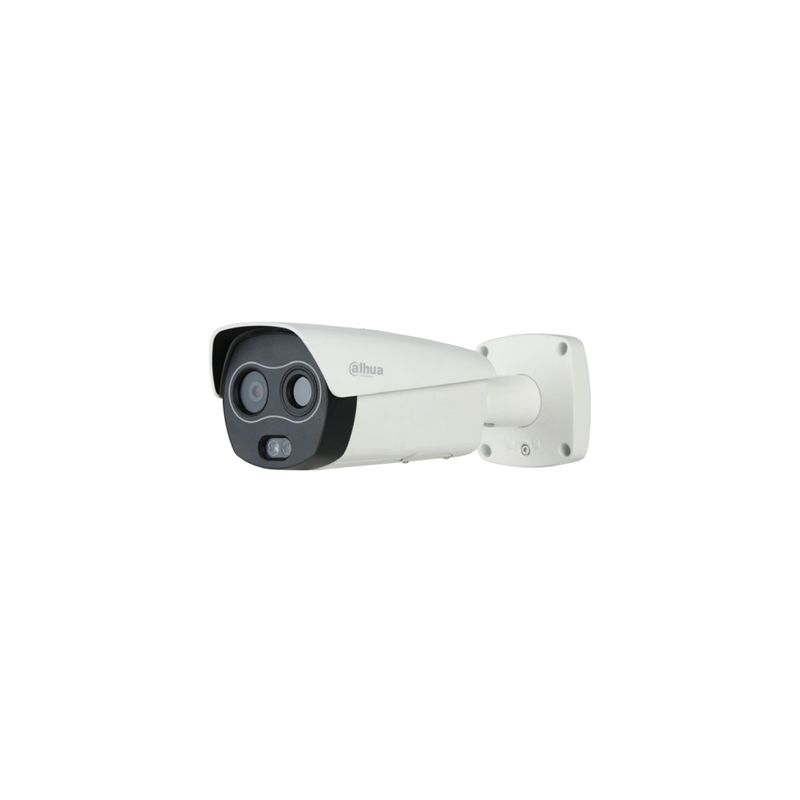

Quick Specs Figure 1 shows the appearance of DH-TPC-BF3221-T.
Table 1 shows the Quick Specs.
| Effective Pixels | 256 × 192 |
| Pixel Size | 12μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | ≤50mK@f/1.0 |
| Focal Length | 8mm |
| Field of View | Horizontal: 38.4°; Vertical: 22.2° |
| Focus Control | Fixed |
| Aperture | F/2.0 |
| Digital Detail Enhancement (DDE) | Yes |
| AGC | Auto; Manual |
| Noise Reduction | 2D NR; 3D NR |
| Image Flip | 180° mirror |
| Color Palettes | 18 (Whitehot/Blackhot/Ironrow/Icefire/Fusion/Rainbow/ Globow/Iconbow1/Iconbow2, etc.) |
| Temperature Measurement Range | 30°C–45°C (86°F–113°F) |
| Temperature Accuracy | ±0.3°C (with black body) when the environment temperature is 10°C to 30°C (50°F to 86°F) |
| Image Sensor | 1/2.8 inch CMOS |
| Max. Resolution | 1920×1080 |
| Pixel | 2MP |
| Electronic Shutter Speed | 1/30000 s–1 s |
| Min. Illumination | Color: 0.01 Lux@F1.6 Black & white: 0.001 Lux@F1.6 0 Lux (IR on) |
| IR Illumination Distance | ≥50 m (164 ft) |
| IR Illuminator On/Off Control | Auto; Manual |
| Close Focus Distance | 2.0 m (6.6 ft) |
| BLC | Yes |
| WDR | Yes |
| HLC | Yes |
| White Balance | Auto/Manual/Indoor/Outdoor/Tracking/Sodium lamp/ Street lamp/Natural |
| S/N Ratio | ≥ 55 dB |
| Region of Interest (RoI) | Yes |
| Exposure Compensation | Yes |
| Video Compression | H.265/H.264M/H.264H/H.264B |
| Resolution | Thermal Main stream: 1280 × 960, 1024 × 768, 640 × 480, 256 × 192. 1280 × 960 by default Sub stream: 640 × 480, 256 × 192. 256 × 192 by default Visible Main stream: 1920 × 1080, 1280 × 720, 704 × 576. 1920 × 1080 by default Sub stream: 704 × 576, 352 × 288. 352 × 288 by default |
| Frame Rate | TThermal (50Hz): Main stream: 1fps–25fps adjustable. 25fps by default; sub stream: 1fps–25fps adjustable. 15fps by default. Visible (50Hz): Main stream: 1fps–25fps adjustable. 1080P by default; sub stream: 1fps–25fps adjustable. 15fps by default. |
| Audio Compression | G.711a; G.711mu; AAC; PCM |
| Protocol | HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP;Multicast; SFTP; 802.1x |
| Storage | Profile S & G, APIMicro SD card (512 G) |
| Interoperability | ONVIF; CGI; DAHUA SDK |
| Browser | IE: IE8 and the later, and explorer with IE core Google: 42 and the earlier Firefox: 52 and the earlier |
| User/Host | 20 users at most (total bandwidth 64 M) |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Certifications | CE: EN55032:2015; EN61000-3-2:2014 FCC:CFR 47 FCC Part15 subpart B; ANSI C63.4-2014 |
| Audio Interface | 1/1 In/Out |
| RS485 | Support |
| Alarm | 2/1 In/Out |
| Network | 1 10M/100M Ethernet port (RJ-45) |
| Audio Input | 1 |
| Audio Output | 1 |
| Alarm Input | 2 |
| Alarm Output | 1 |
| RS-485 | 1 pair |
| Power Supply | 12V±20% DC; POE (802.3af); ePOE |
| Power Consumption | Basic consumption: <5W (12V DC) Max consumption: <13W (12V DC, without power adapter) |
| Operating Temperature | 10°C–30°C (50°F–86°F) |
| Operating Humidity | ≤93%@40°C (104°F) |
| Protection | IP67 |
| Product Dimensions | 292.1 mm × 103.8 mm × 96.7 mm (11.50″ × 4.09″ ×3.81″) |
| Packaging Dimensions | 365 mm × 175 mm × 176 mm (14.37″ × 6.89″ × 6.93″ ) |
