DS-2AE7232TI-A
Model: DS-2AE7232TI-A – Hikvision Turbo HD PTZ
Details: 7″ IR PTZ, IP66 protection, 32x Optical, 16x Digital + 120dB WDR + 150m IR + 4-in-1 output, 24 VAC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2AE7232TI-A Overview

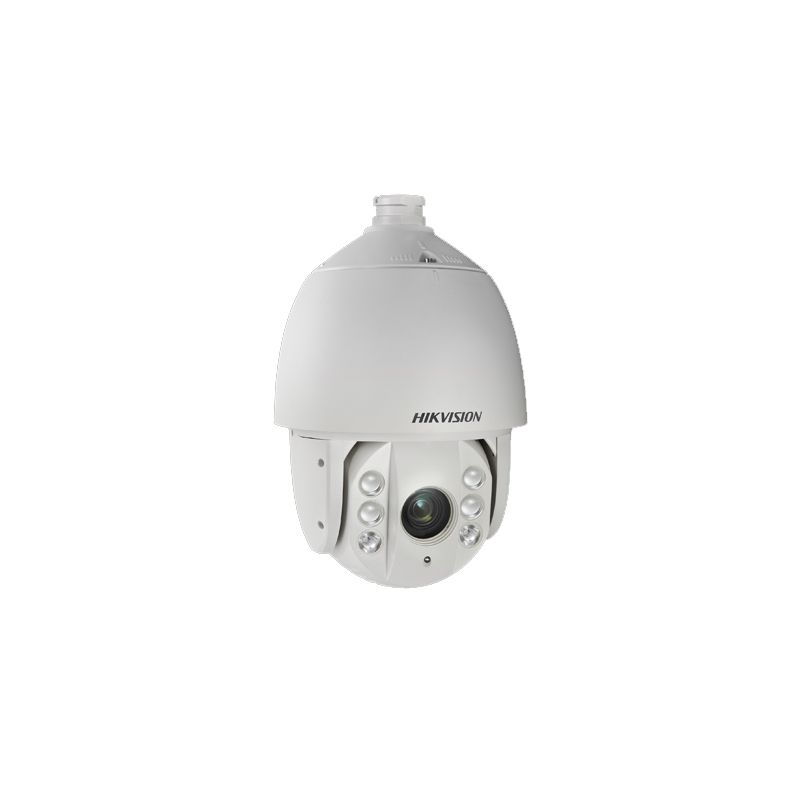

Quick Specs Figure 1 shows the appearance of DS-2AE7232TI-A.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ HD progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON)B/W: 0.001 Lux @(F1.6, AGC ON)0 lux with IR |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| WDR | ≥ 120 dB |
| Anti-shake | On / Off |
| Shutter Time | PAL: 1-1/10,000sNTSC: 1-1/10,000s |
| Day& Night | ICR |
| Digital Zoom | 16x |
| Privacy Mask | 8 programmable privacy masks |
| Auto Focus | Auto / Semi-automatic / Manual |
| Focal Length | 4.8 mm to 153 mm, 32× Optical |
| Zoom Speed | Approx. 3.5 s (optical, wide to tele) |
| Field of View | 54.2° to 1.97° (wide-tele) |
| Minimum Working Distance | 10-1500mm (Wide-Tele) |
| Aperture Range | F 1.6 to F 4.6 |
| Pan Range | 360°endless |
| Pan Speed | Pan manual speed: 0.1° to 160°/sPan preset speed: 160°/s |
| Tilt Range | -15°-90° (Auto Flip) |
| Tilt Speed | Tilt manual speed: 0.1° to 120°/sTilt preset speed: 120°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 256 |
| Patrol | 10 patrols, up to 32 presets per patrol |
| Pattern | 5 patterns, with the total recording time no less than 10 minutes |
| Power-off Memory | Support |
| Park Action | Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None |
| PTZ Position Display | ON/OFF |
| IR Distance | 150m |
| IR irradiation angle | Adjustable by zoom |
| Video Output | Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC) |
| UTC function | UTC protocol (or HIKVISION-C protocol in previous DVR) |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Language | English |
| Power Supply | 24V AC |
| Power Consumption | Max. 40 W (IR:14 W) |
| Working Temperature/Humidity | -30 °C-65°C(-22°F-149°F)90% or less |
| Protection Level | IP66 standard (outdoor dome)TVS 4,000V lightning protection, surge protection and voltage transient protection |
