-5%
DS-2CC12D9T-A
Model: DS-2CC12D9T-A – Hikvision Turbo HD Cameras
Details: D9T_TVI_1080p: 2-in-1 (TVI & CVBS), EXIR, 120dB WDR, 3D DNR, Motion Detection, Privacy Mask, PoC, Voltage Detection, – protection, C/CS Mount Lens, WDR + ICR + Auto Iris DC Drive + 1* Alarm I/O + Defog, 12 VDC / 24 VAC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CC12D9T-A Overview

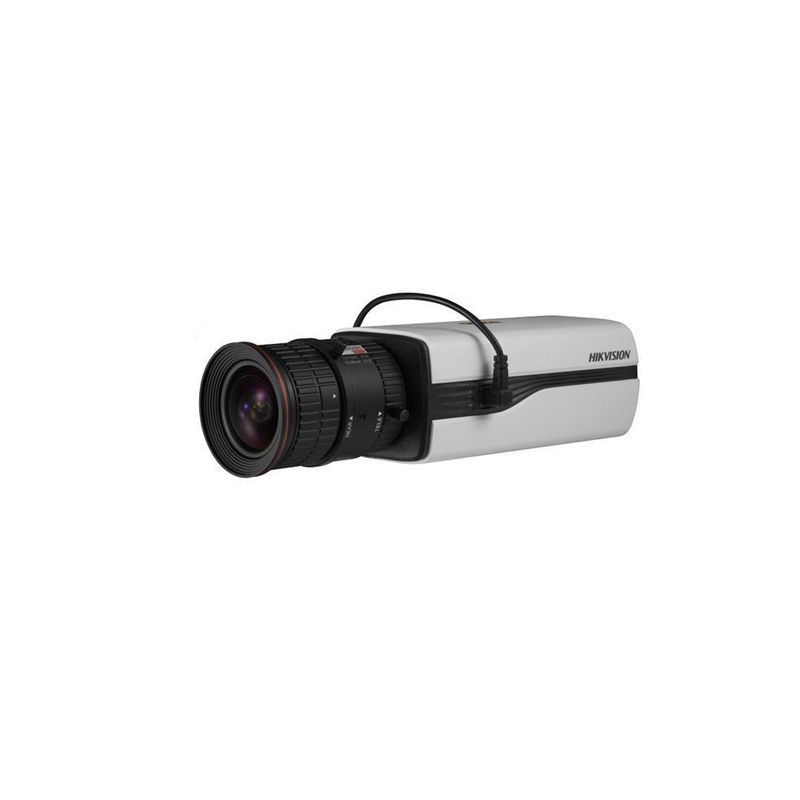

Quick Specs Figure 1 shows the appearance of DS-2CC12D9T-A.
Table 1 shows the Quick Specs.
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1944(H)×1092(V) |
| Min. Illumination | Color : 0.01 Lux @(F1.2,AGC ON)B/W : 0.001 Lux @(F1.2,AGC ON) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | C/CS Mount |
| Auto Iris | DC Drive |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Camera ID | On/off (15 characters, position programmable) |
| D/N Mode | Color/ BW/ EXT |
| Auto White Balance | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual |
| Private Mask | On/Off, maximum 8 zones |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/ Japanese/ CHN1/ CHN2/ Korean/ German/ French/ Italian/ Spanish/ Polish/ Russian/ Portuguese/ Dutch/ Turkish/ Hebrew/ Arabic |
| Function | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
| Scene | Indoor, Outdoor, Indoor1, LOW-LIGHT |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15%, 24 VAC±15% |
| Power Consumption | Max. 6W |
| Communication | Up the coaxProtocol: HIKVISION-C(Coaxitron) |
| Dimension | 69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”) |
Get more information
Do you have any question about the DS-2CC12D9T-A?
Contact us now via Live Chat or sales@metafinitivetech.com
