DS-2CD1643G0-IZ

Original price was: $142.00.Current price is: $134.90.

Model: DS-2CD1643G0-IZ – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, Motorized VF f2.8-12mm lens, DWDR, DC12V & PoE, 128GB TF Card Slot, Support mobile monitoring via HikConnect
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-2CD1643G0-IZ Categories: , ,
Description

DS-2CD1643G0-IZ Overview

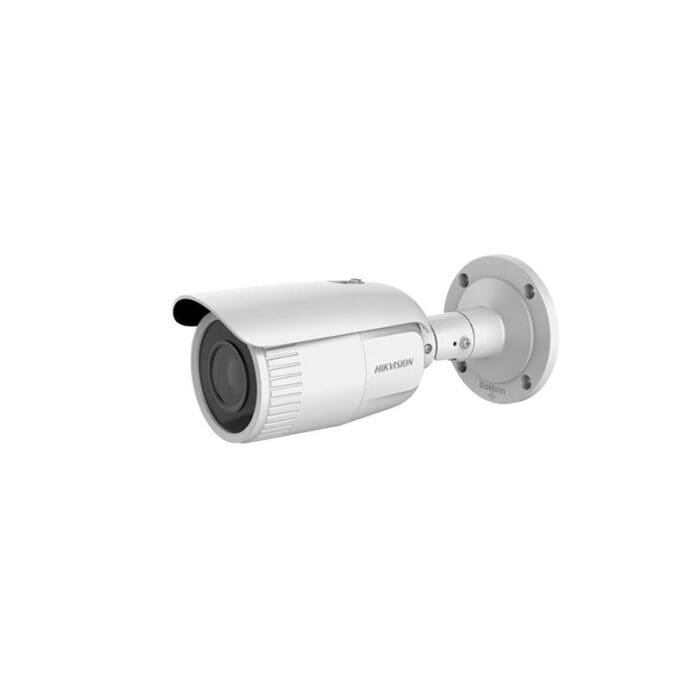

Quick Specs Figure 1 shows the appearance of DS-2CD1643G0-IZ.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0°to 90°, rotation: 0° to 360°
Focal Length 2.8 to 12 mm
Aperture F1.6
Focus Auto
FOV Horizontal field of view: 98°to 28°
Lens Mount Φ14
IR Range Up to 30 m
Wavelength 850 nm
Video Compression Main stream: H.265/H.264
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2560 Ă— 1440
Main Stream 50Hz: 20fps (2560 Ă— 1440), 25fps (2304 Ă— 1296, 1920 Ă— 1080, 1280 Ă— 720)
Max. Frame Rate 60Hz: 30fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
Sub-stream 50Hz: 25fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
Image Enhancement BLC, 3D DNR
Image Settings Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch Auto, scheduled
Network Storage Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, Specification Available Models DS-2CD1643G0-I (2.8 mm to 12 mm), DS-2CD1643G0-IZ (2.8 mm to 12 mm) 802.1X, QoS, IPv6, UDP, Bonjour
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version 5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output (Without -Z) 1Vp-p composite output (75 Ω/BNC)
Reset Button Yes
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 20%, 5.5 mm coaxial power plug
Power Consumption and Current 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
Ingress Protection IP67
Dimensions 105 mm Ă— 105 mm Ă— 145 mm (4.1″ Ă— 4.1″ Ă— 5.7″)

Get more information
Do you have any question about the DS-2CD1643G0-IZ?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Hikvision certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
