-5%
DS-2CD1743G0-IZ
Model: DS-2CD1743G0-IZ – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, Motorized VF f2.8-12mm lens, DWDR, DC12V & PoE, 128GB TF Card Slot, Support mobile monitoring via HikConnect
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD1743G0-IZ Overview

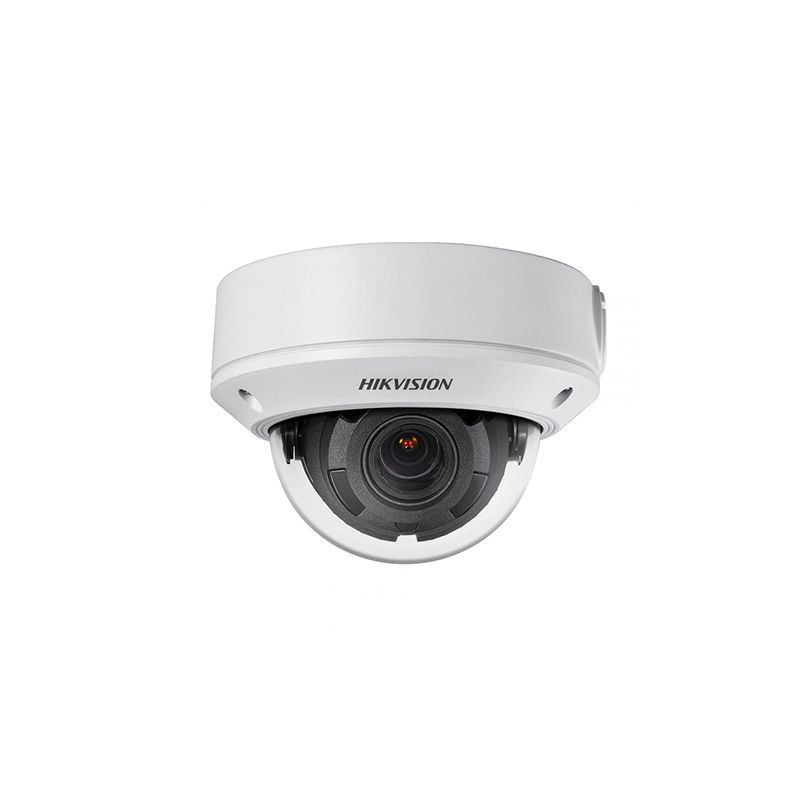

Quick Specs Figure 1 shows the appearance of DS-2CD1743G0-IZ.
Table 1 shows the Quick Specs.
| Image Sensor | 1/3″ progressive scan CMOS |
| Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter |
| Slow Shutter | Yes |
| Auto-Iris | No |
| Day &Night | IR cut filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120 dB |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0°to 70°, rotation: 0° to 360° |
| Focal Length | 2.8 to 12 mm |
| Aperture | F1.6 |
| Focus | Auto |
| FOV | Horizontal field of view: 98°to 28° |
| Lens Mount | Φ14 |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video Compression | Main stream: H.265/H.264 |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Max. Resolution | 2560 × 1440 |
| Main Stream | 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
| Max. Frame Rate | 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Sub-stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| Image Enhancement | BLC, 3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, scheduled |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, Specification Available Models DS-2CD1643G0-I (2.8 mm to 12 mm), DS-2CD1643G0-IZ (2.8 mm to 12 mm) 802.1X, QoS, IPv6, UDP, Bonjour |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
| Firmware Version | 5.5.3 |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output (Without -Z) | 1Vp-p composite output (75 Ω/BNC) |
| Reset Button | Yes |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 20%, 5.5 mm coaxial power plug |
| Power Consumption and Current | 12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W |
| Ingress Protection | IP67, IK10 |
| Dimensions | Φ 141 mm × 99.9 mm (5.6″ × 3.9″) |
