DS-2CD1H43G0-IZ
Model: DS-2CD1H43G0-IZ – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, 30m IR, IP67 Protection, Motorized VF f2.8-12mm lens, DWDR, DC12V & PoE, 128GB TF Card Slot, Support mobile monitoring via HikConnect
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD1H43G0-IZ Overview

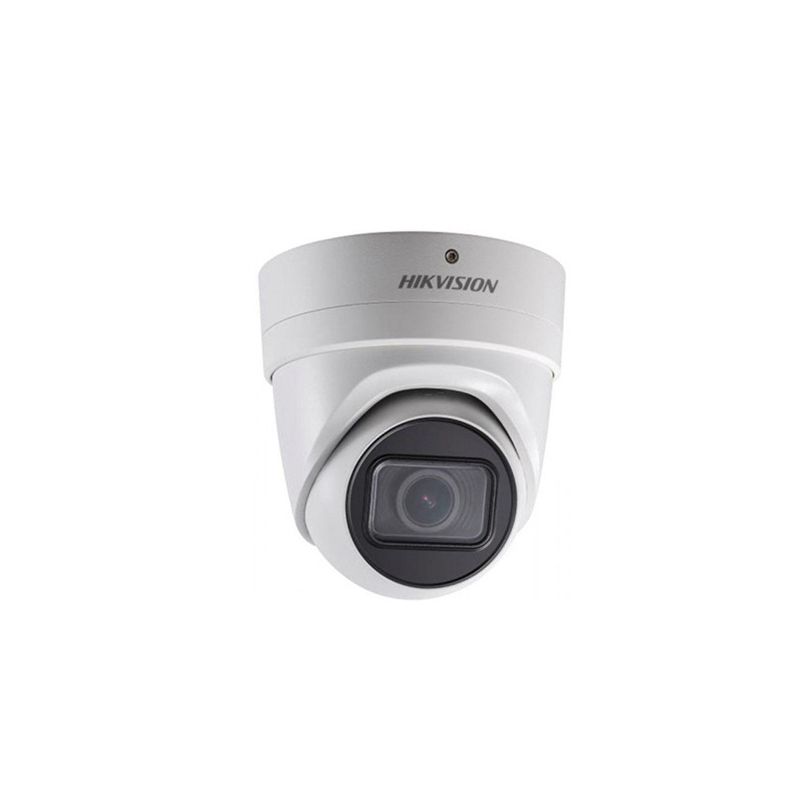

Quick Specs Figure 1 shows the appearance of DS-2CD1H43G0-IZ.
Table 1 shows the Quick Specs.
| Model | DS-2CD1H43G0-IZ |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2560×1440 |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0°to 355°, tilt: 0°to 70°, rotation: 0°to 355° |
| Lens Type | Varifocal Lens, motoried lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm: horizontal FOV 102°to 31°, vertical FOV 54°to 17°, diagonal FOV 123°to 35° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| IR Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Main Stream | 50 Hz: 20 fps (2560×1440)25 fps (2304×1296, 1920×1080, 1280×720)60 Hz: 20 fps (2560×1440)30 fps (2304×1296, 1920×1080, 1280×720) |
| Sub Stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360)60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Region Of Interest (ROI) | 1 fixed region for main stream |
| Audio Compression | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Audio Bit Rate | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -S: 8 kHz/16 kHz |
| Environment Noise Filtering | -S: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnPâ„¢, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface, ISAPI |
| User/Host | Up to 32 users. 3 levels: administrator, operator and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10+Plug-in free live view: Chrome 57.0+, Firefox 52.0+Local service: Chrome 57.0+, Firefox 52.0+ |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| Day/Night Switch | Auto, Schedule, Day, Night |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Enhancement | BLC, 3D DNR |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Audio | -S:1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100Ω, interface type: non-equilibrium |
| Alarm | -S: 1 input,1 output, max. 12 VDC, 30 mA |
| Reset Key | Yes |
| Basic Event | Motion detection, video tampering alarm, exception |
| Linkage | Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture |
| Material | Cover: plastic, main body: metal |
| Camera Dimension | Ø129.4 mm×116.4 mm (Ø5.1″×4.6″) |
