DS-2CD2443G0-IW

Original price was: $81.00.Current price is: $76.95.

Model: DS-2CD2443G0-IW – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265+ Codec, EXIR Cube, Indoor Protection, 2.8/4mm fixed lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-2CD2443G0-IW Categories: , ,
Description

DS-2CD2443G0-IW Overview

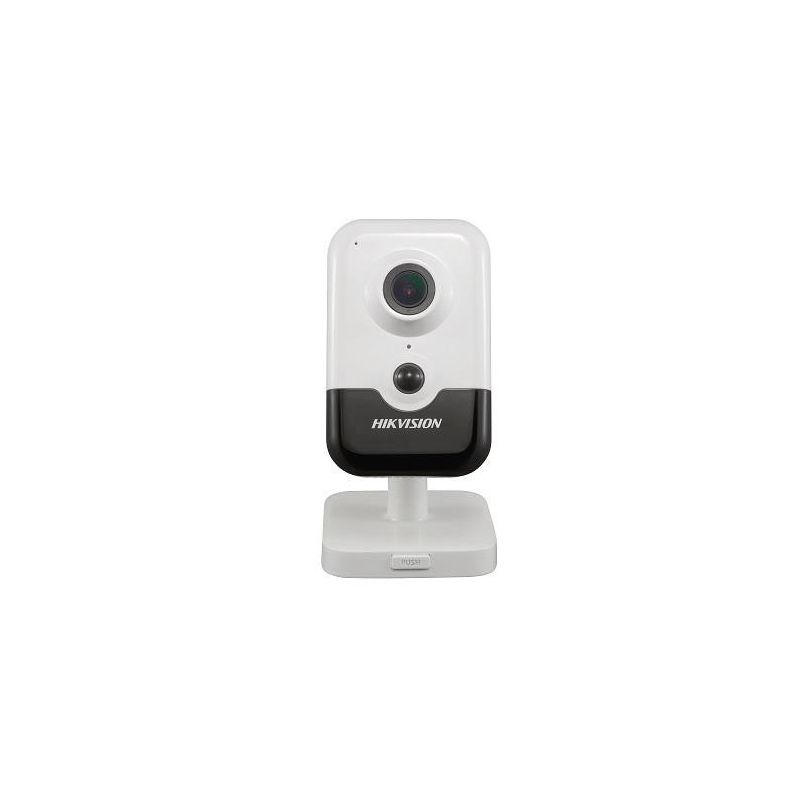

Quick Specs Figure 1 shows the appearance of DS-2CD2443G0-IW.

Table 1 shows the Quick Specs.

Image Sensor 1/3″ Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 lux @(F1.6, AGC ON), 0 lux with IR
Shutter time 1/3 s to 1/100,000 s
Slow shutter Support
Lens 2.8 mm, horizontal FOV: 98°, vertical FOV: 55°, diagonal FOV: 114°
Lens Mount M12
Adjustment Range Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night IR Cut Filter
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR
Focus Fixed
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile Main Profile/High Profile
Video bit rate 256Kbps~16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Triple Streams Yes
Max. Image Resolution 2688 Ă— 1520
Frame Rate 50Hz: 25fps (2688 Ă— 1520, 2560 Ă— 1440, 2304 Ă— 1296, 1920 Ă— 1080)60Hz: 30fps (2688 Ă— 1520, 2560 Ă— 1440, 2304 Ă— 1296, 1920 Ă— 1080)
Sub Stream 50Hz: 25fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)60Hz: 30fps (640 Ă— 480, 640 Ă— 360, 320 Ă— 240)
Third Stream 50Hz: 25fps (1280 Ă— 720, 640 Ă— 360, 352 Ă— 288)60Hz: 30fps (1280 Ă— 720, 640 Ă— 360, 352 Ă— 240)
Image Enhancement BLC/3D DNR/ROI/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch Day/Night/Auto/Schedule/Triggered by alarm in
Network Storage microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols 802.11b: DQPSK, DBPSK, CCK802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), ISAPI
Audio 1 built-in mic, 1 built-in speaker, mono sound
Communication Interface 1 RJ45 10M / 100M Ethernet interface
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Behavior Analysis Line crossing detection, intrusion detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Recognition Face Detection
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.412 GHz to 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Security WPA, WPA2
Transmission Rate 11b: 11Mbps11g: 54Mbps11n: up to 150Mbps
Wireless Range 50m(depend on environment)
Operating Conditions -10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption 12 VDC, 0.5 A, max. 6 W, Φ 5.5 mm coaxial plug powerPoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Range Up to 10m
PIR 10m
Dimensions 102.8 mm Ă— 65.2 mm Ă— 32.6 mm (4.1″ Ă— 2.6″ Ă— 1.3″)

Get more information
Do you have any question about the DS-2CD2443G0-IW?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Hikvision certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
