DS-2CD2523G0-IS

Original price was: $98.60.Current price is: $93.67.

Model: DS-2CD2523G0-IS – Hikvision Network IP Cameras
Details: 2MP Max Resolution, H.265+ Codec, EXIR mini Dome, IP66, IK08 Protection, 2.8/4/6mm fixed lens, 120dB WDR, Line crossing detection, Intrusion detection + Face detection
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-2CD2523G0-IS Categories: , ,
Description

DS-2CD2523G0-IS Overview

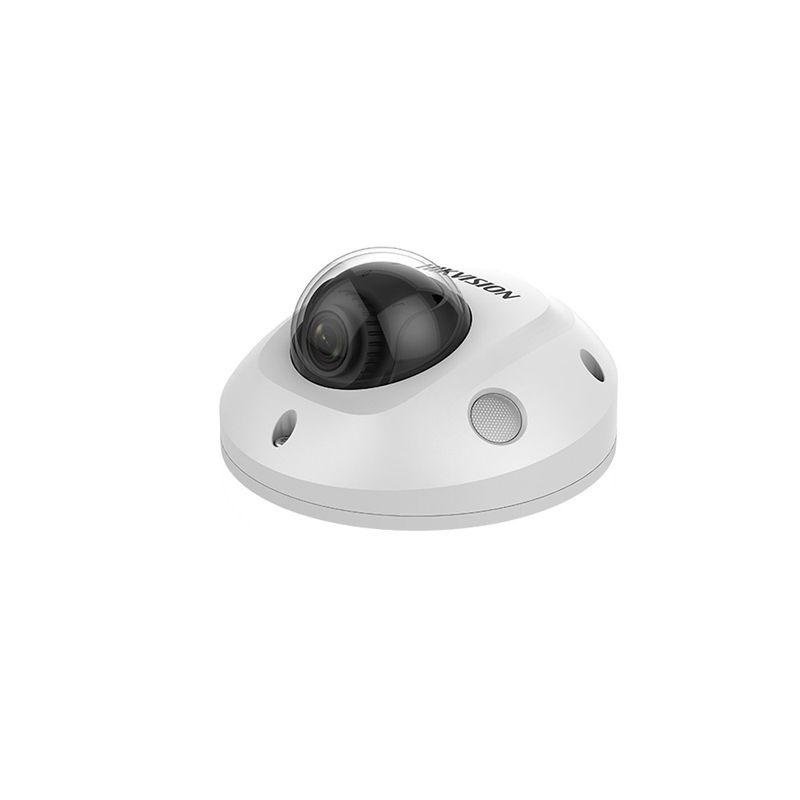

Quick Specs Figure 1 shows the appearance of DS-2CD2523G0-IS.

Table 1 shows the Quick Specs.

Image Sensor 1/2.7” Progressive Scan CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time 1/3 s to 1/100,000 s
Slow shutter Support
Lens 2.8 mm: Horizontal field of view: 114°, Vertical field of view: 62°, Diagonal field of view: 135°4 mm: Horizontal field of view: 86°, Vertical field of view: 46°, Diagonal field of view: 102°6 mm: Horizontal field of view: 54°, Vertical field of view: 30°, Diagonal field of view: 62°
Lens Mount M12
Adjustment Range Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night IR Cut Filter
Wide Dynamic Range 120 dB
Digital noise reduction 3D DNR
Focus Fixed
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile Main Profile/High Profile
Video bit rate 256Kbps~16Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Triple Streams Yes
Max. Image Resolution 1920 x 1080
Frame Rate 50Hz:25fps (1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement BLC/3D DNR/ROI/HLC
Image Settings Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch Auto/Schedule/Day/Night/Triggered by Alarm In (-S)
Network Storage microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility ONVIF (Profile S, Profile G), ISAPI
Audio with -S model：2 Inputs: line in or mic in (built-in microphone), 1 output: line out, mono sound, terminal block
Communication Interface 1 RJ45 10M / 100M Ethernet interface
Alarm 1 Input: Alarm in, 1 Output: Alarm out (max. 12 VDC, 30 mA), terminal block
On-board storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
Environment Noise Filtering Support
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Behavior Analysis Line crossing detection, intrusion detection
Line Crossing Detection Cross a pre-defined virtual line
Intrusion Detection Enter and loiter in a pre-defined virtual region
Recognition Face Detection
Operating Conditions -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption 12 VDC, 0.7 A, max. 8.5W, Φ 5.5mm coaxial plug powerPoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Impact Protection IK08 Protection Level
Weather Proof IP66
IR Range Up to 10m
Dimensions Φ110 mm × 56.4 mm (Φ4.3″ × 2.2″)

Get more information
Do you have any question about the DS-2CD2523G0-IS?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Hikvision certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
