DS-2CD2T46G1-2I
Model: DS-2CD2T46G1-2I – Hikvision Network IP Cameras
Details: 4MP Max Resolution, H.265 Codec, IP67 Protection, 2.8/4/6mm Fixed lens, F1.6, 120dB WDR, 50m, IR, Line crossing detection, Intrusion detection,Region entrance, Region exiting, False alarm filter by target classification
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CD2T46G1-2I Overview

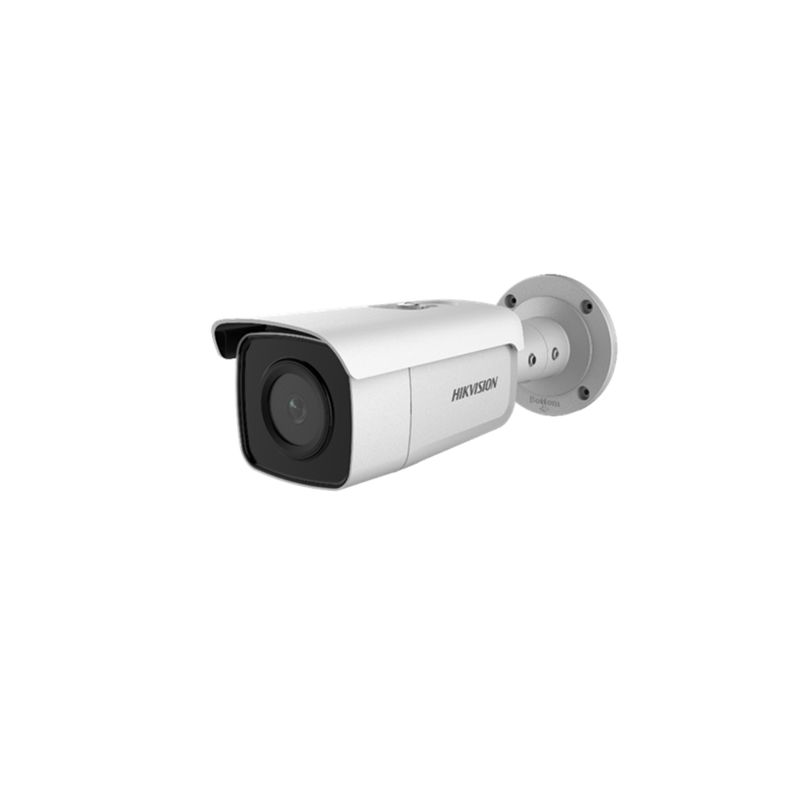

Quick Specs Figure 1 shows the appearance of DS-2CD2T46G1-2I.
Table 1 shows the Quick Specs.
| Model | DS-2CD2T46G1-2I |
| Image Sensor | 1/2.7″ Progressive Scan CMOS |
| Min. Illumination | 0.007 Lux @ (F1.2, AGC ON), 0.012 Lux @ (F1.6, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Focus | Fixed |
| Lens Type | 2.8/4/6/8 mm |
| FOV | 2.8 mm, horizontal FOV: 104°, vertical FOV: 58°, diagonal FOV: 124°,4 mm, horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°,6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 58°,8 mm, horizontal FOV: 39°, vertical FOV: 21°, diagonal FOV: 45° |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Aperture Type | Fixed |
| IR Range | -2I: 2LEDs, up to 50 m,-4I: 4LEDs, up to 80 m |
| Wavelength | 850 nm |
| Max. Resolution | 2688 × 1520 |
| Main Stream | 50Hz: 25fps (2688×1520, 1920×1080, 1280×720),60Hz: 30fps (2688×1520, 1920×1080, 1280×720) |
| Sub Stream | 50Hz: 25fps (704×576, 640×480, 352×288),60Hz: 30fps (704×576, 640×480, 352×288) |
| Video Compression | Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.265 encoding and H.264 encoding support |
| Region Of Interest (ROI) | Support 1 fixed region for main stream and sub stream separately |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users,3 levels: Administrator, Operator and User |
| Network Storage | Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Alarm Trigger | Tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Day/Night Switch | Day/Night/Auto/Schedule |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm filter by target classification |
| Power Supply | 12 VDC±25%, 5.5 mm coaxial power plug,PoE (802.3at, class 4) |
| Camera Dimension | Camera:Φ105×289.5 mm (Φ4.1″ ×11.4″) |
