DS-2CE16U1T-ITF
Model: DS-2CE16U1T-ITF – Hikvision Turbo HD Cameras
Details: 8 MP Bullet Camera
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2CE16U1T-ITF Overview

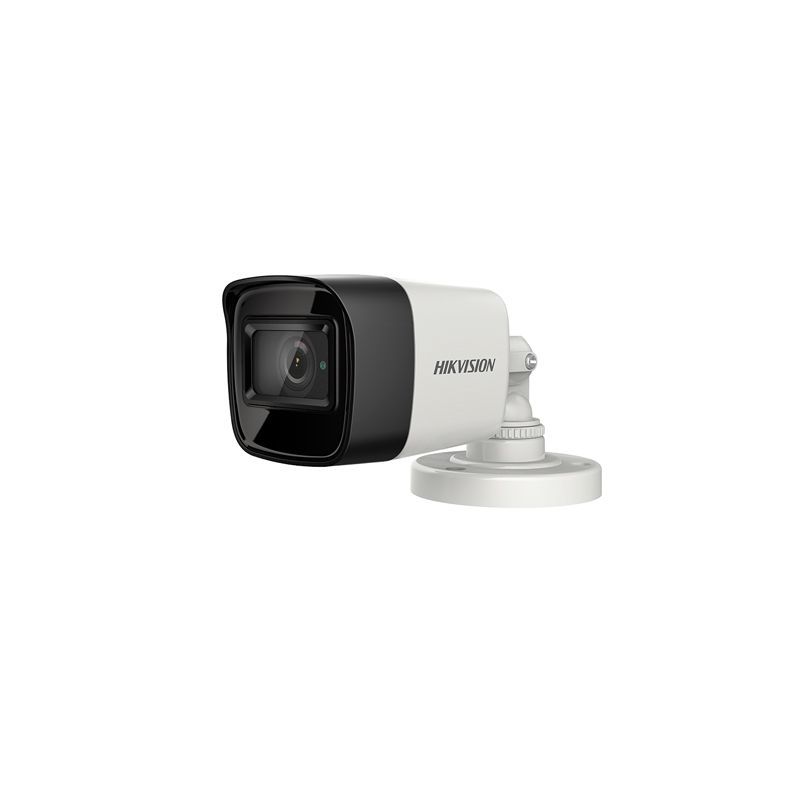

Quick Specs Figure 1 shows the appearance of DS-2CE16U1T-ITF.
Table 1 shows the Quick Specs.
| Image Sensor | 8.29 MP high performance CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 3840 (H) × 2160 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount | M16 |
| Adjustment Range | Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N |
| Synchronization | Internal Synchronization |
| Horizontal Field of View | 102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm) |
| D/N Mode | Auto/Color/BW (Black and White) |
| BLC | Support |
| AGC | Support |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Video Out | 1 HD analog output |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 5.3 W |
| IR Range | Up to 30m |
| Communication | Up the coaxProtocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
| Dimension | 58 mm × 61 mm × 159.8 mm (2.28″ × 2.40″ × 6.42″) |
