DS-2CE56D0T-VFIR3F
Model: DS-2CE56D0T-VFIR3F – Hikvision Turbo HD Cameras
Details: D0T_TVI_1080p: 4-in-1 (TVI, CVI, AHD & CVBS), 3D DNR, IP66 protection, 2.8~12mm Lens, ICR + 40m IR Distance+ 42 pcs IR LEDs, 12 VDC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CE56D0T-VFIR3F Overview

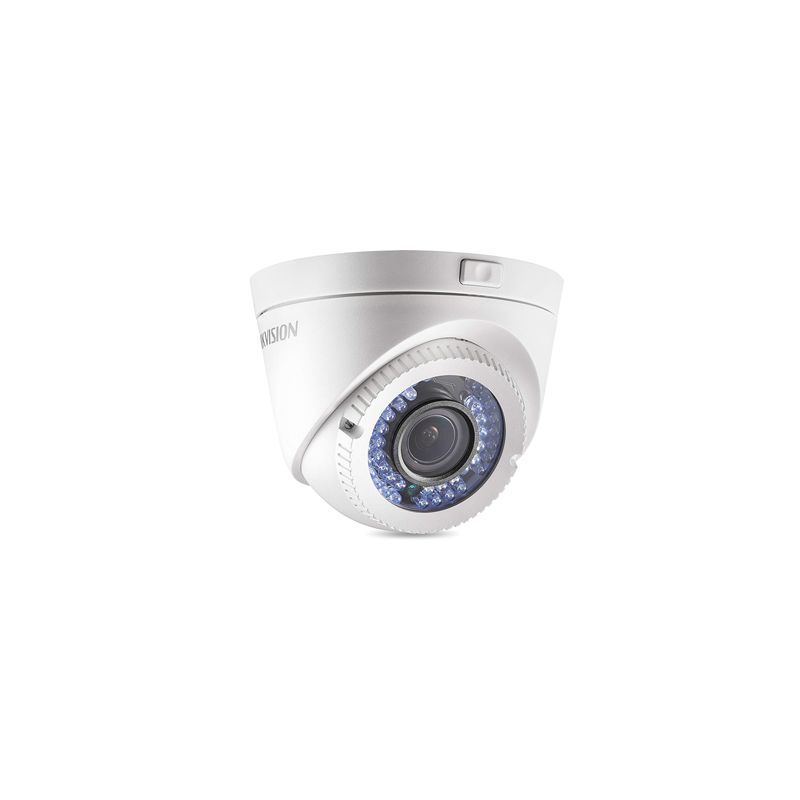

Quick Specs Figure 1 shows the appearance of DS-2CE56D0T-VFIR3F.
Table 1 shows the Quick Specs.
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 – 12 mm @ F1.4 |
| Lens Mount | φ14 |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | PAL: 1080p@25fpsNTSC: 1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| IR Range | Up to 40m |
| Dimension | Φ130.54 × 102.4mm (Φ5.1” × 4”) |
