DS-2CE56D0T-VFIRF
Model: DS-2CE56D0T-VFIRF – Hikvision Turbo HD Cameras
Details: D0T_TVI_1080p: 4-in-1 (TVI, CVI, AHD & CVBS), 3D DNR, – protection, 2.8~12mm Lens, ICR + 30m IR Distance+ 24 pcs IR LEDs, 12 VDC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CE56D0T-VFIRF Overview

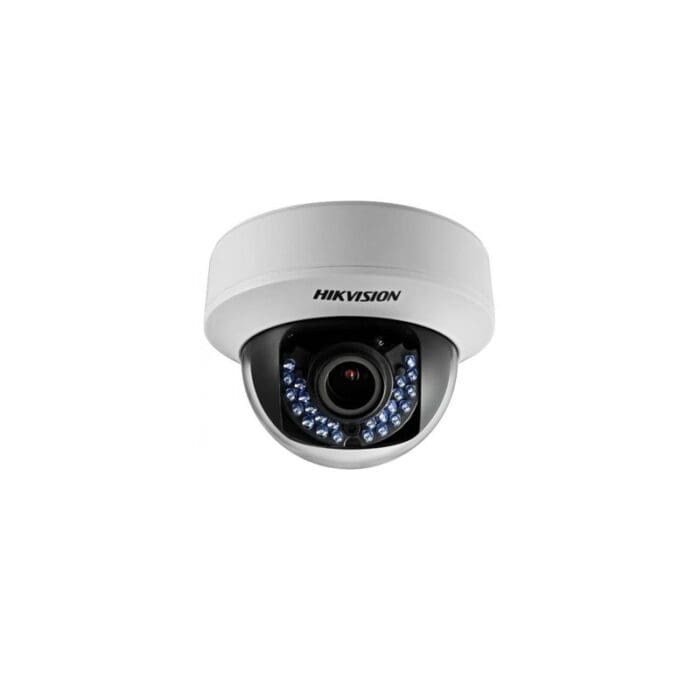

Quick Specs Figure 1 shows the appearance of DS-2CE56D0T-VFIRF.
Table 1 shows the Quick Specs.
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 – 12 mm @ F1.4 |
| Lens Mount | φ14 |
| Adjustment Range | Pan: 0° to 340°, Tilt: 0° to 75°, Rotation: 0° to 355° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | PAL: 1080p@25fpsNTSC: 1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4 W |
| IR Range | Up to 30m |
| Dimension | Φ136 × 101 mm (Φ 5.35” × 3. 98”) |
