-5%
DS-2CE76D3T-ITMF
Model: DS-2CE76D3T-ITMF – Hikvision Turbo HD Cameras
Details: D3T_TVI_1080p: 4-in-1 (TVI, CVI, AHD & CVBS), EXIR, 3D DNR, 120dB WDR, up the coax, IP67 protection, 2.8/3.6/6mm Lens, WDR + 30m IR Distance+ 1 pc EXIR LED, 12 VDC power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2CE76D3T-ITMF Overview

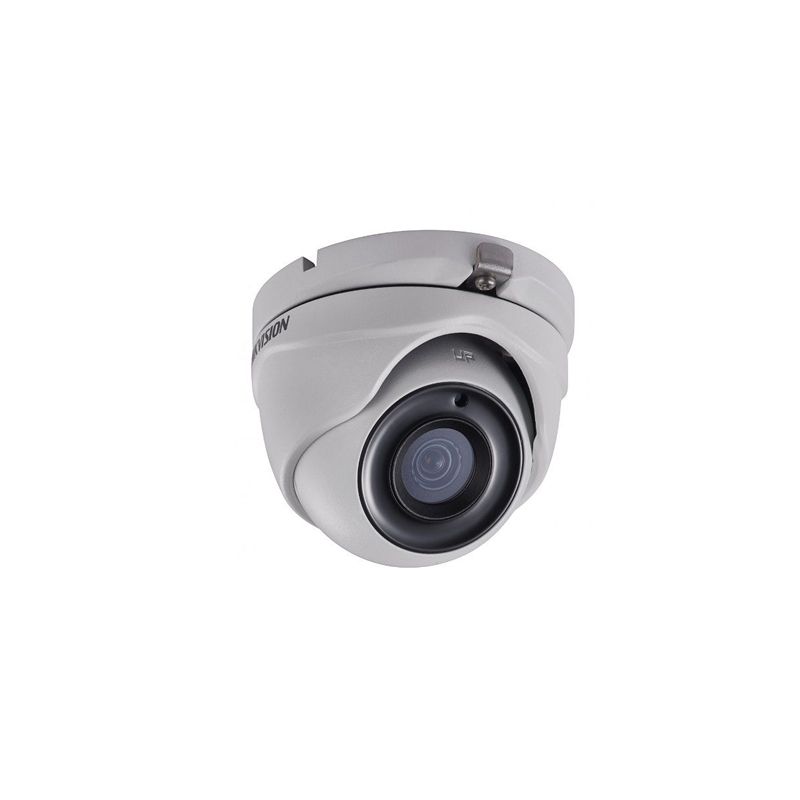

Quick Specs Figure 1 shows the appearance of DS-2CE76D3T-ITMF.
Table 1 shows the Quick Specs.
| Image Sensor | 2.0 megapixel progressive scan CMOS |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920 (H) × 1080 (V) |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8 mm, 3.6 mm, 6 mm fixed lens |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Day& Night | IR cut filter |
| Video Frame Rate | PAL: 1080p@25fpsNTSC: 1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| BLC | Support |
| Up the Coax | Support |
| 3D DNR (Digital Noise Reduction) | Level 1 to 9 |
| D/N Mode | Auto/Color/BW (Black and White) |
| AGC | Low/middle/high |
| Language | English |
| Function | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Video Out | 1 HD analog output |
| Material | Metal |
| Operating Conditions | -40 °C – 60 °C (-40 °F – 140 °F)Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 4.6 W |
| Weather Proof | IP67 |
| IR Range | Up to 30m |
| Dimension | 89.47 mm × 68.2 mm (3.52″ × 2.68″) |
