DS-2DE4A215IW
Model: DS-2DE4A215IW – Hikvision DE-line Network PTZ
Details: 2MP Max Resolution, Optical: 25X + Digital: 16X zoom, Pan: 360° + Tilt: -5°-90°, IP66 Protection, 5~75mm lens + F1.6-F3.5, 120dB WDR, 50m, IR, 128GB SD Card, Audio: 1 In/ 1 Out DC12V & PoE power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2DE4A215IW Overview

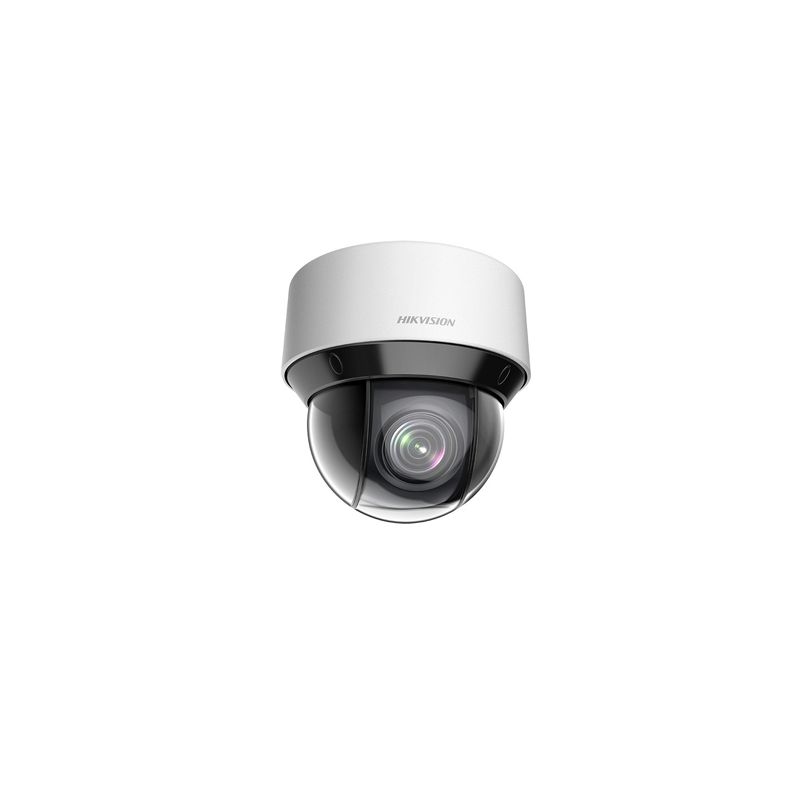

Quick Specs Figure 1 shows the appearance of DS-2DE4A215IW.
Table 1 shows the Quick Specs.
| AGC | Auto/Manual |
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| IR Distance | Up to 50 m |
| IR Intensity | Automatically adjusted, depending on the zoom ratio |
| Movement Range (Pan) | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 300°/s,Preset Speed: 350°/s |
| Movement Range (Tilt) | From -5°to 90°(Auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 160°/s,Preset Speed: 200°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-Off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust |
| Material | ADC12, PC, PC+ABS, SUS304, POM |
| Dimensions | Φ169 mm×161 mm (Φ6.65″×6.34″) |
| Protection Level | IP66 Standard; TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Working Temperature | -30°C to 65°C (-22°F to 149°F) |
