DS-2DE4A225IW
Model: DS-2DE4A225IW – Hikvision DE-line Network PTZ
Details: 2MP Max Resolution, Optical: 25X + Digital: 16X zoom, Pan: 360° + Tilt: -5°-90°, IP66 Protection, 5~75mm lens, F1.6-F3.5, 120dB WDR, 50m, IR, 128GB SD Card, Audio: 1 In/ 1 Out DC12V & PoE power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2DE4A225IW Overview

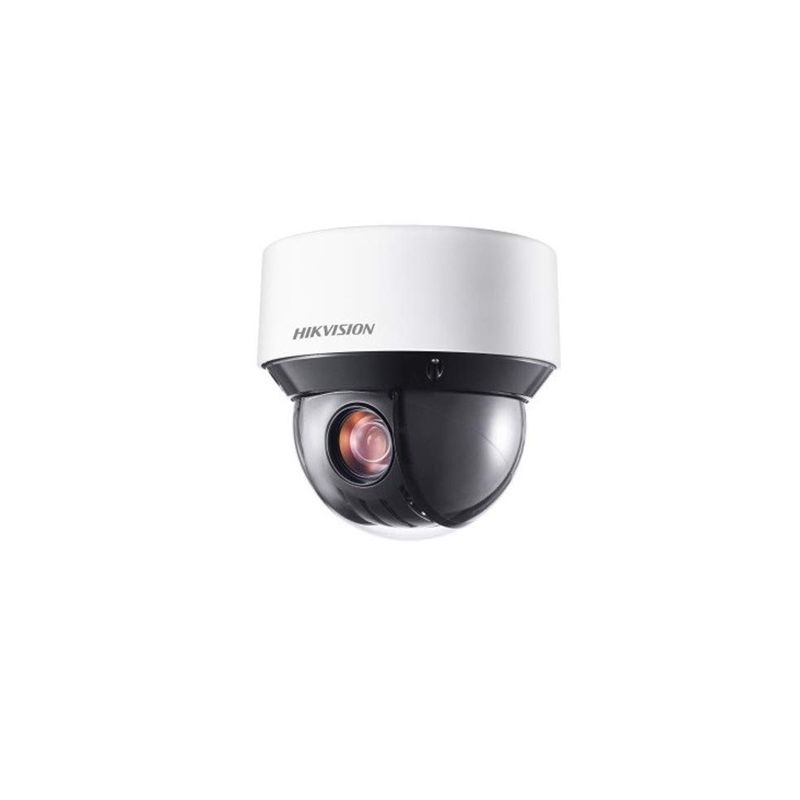

Quick Specs Figure 1 shows the appearance of DS-2DE4A225IW.
Table 1 shows the Quick Specs.
| Model | DS-2DE4A225IW |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 lux @ (Æ’/1.6, AGC on); B/W: 0.001 lux @ (Æ’/1.6, AGC on); 0 lux with IR |
| Shutter Speed | 1/1 s to 1/30,000 s w/slow shutter mode (2x, 3x, 4x, 6x, 8x) |
| Day/Night | IR cut filter |
| Digital Zoom | 16× |
| Aperture | F1.0 |
| Focus Mode | Auto/semi-automatic/manual |
| WDR | 120 dB WDR |
| Focal Length | 4.8 mm to 120 mm, 25x optical |
| Zoom Speed | Approximately 3.2 s (optical lens, wide to tele) |
| Angle of View | Horizontal field of view: 57.6° to 2.5° (wide to tele); vertical field of view: 34.4° to 1.4° (wide to tele); diagonal field of view: 64.5° to 2.9° (wide to tele) |
| Minimum Working Distance | 10 mm to 1,500 mm (wide to tele) |
| Aperture Range | Æ’/1.6 to Æ’/22 |
| IR Distance | 165 ft (50 m) |
| Smart IR | Supported |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG; third stream: H.265/H.264/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Supported |
| H.265 Type | Main Profile |
| H.265+ | Supported |
| Video Bit Rate | 32 kbps to 16,384 kbps |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third stream | 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus |
| API | Open-ended, supports ONVIF, ISAPI, and CGI, supports HIKVISION SDK and third-party management platforms |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP / IP, DHCP, PPPoE, Bonjour |
| User/Host | Up to 32 users. Three levels: administrator, operator, and user |
| Network Storage | Built-in memory card slot, supports microSD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/CIPS), ANR |
| Client | iVMS-4200, iVMS-4500, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Alarm Linkage | Alarm actions such as preset, patrol scan, pattern scan, memory card video record, trigger recording, notify surveillance center, upload to FTP/ memory card/NAS, send e-mail, etc. |
| Power | 12 VDC and PoE+ (802.3 at, class 4), maximum: 18 W (IR maximum: 5 W) |
| Material | ADC12, PC, PC + ABS, SUS304, POM |
| Camera Dimension | Ø6.65″ x 6.34″ (Ø169 mm x 161 mm) |
