DS-2DE5330W-AE3
Model: DS-2DE5330W-AE3 – Hikvision DE-line Network PTZ
Details: 3MP Max Resolution, Optical: 30X + Digital: 16X zoom, Pan: 360° + Tilt: -5°-90°, – Protection, 4.3~129mm lens +F1.6-F5.0, 120dB WDR, -, IR, 256GB SD Card Alarm: 1 In/ 1 Out, Audio: 1 In/ 1 Out DC12V & PoE power
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2DE5330W-AE3 Overview

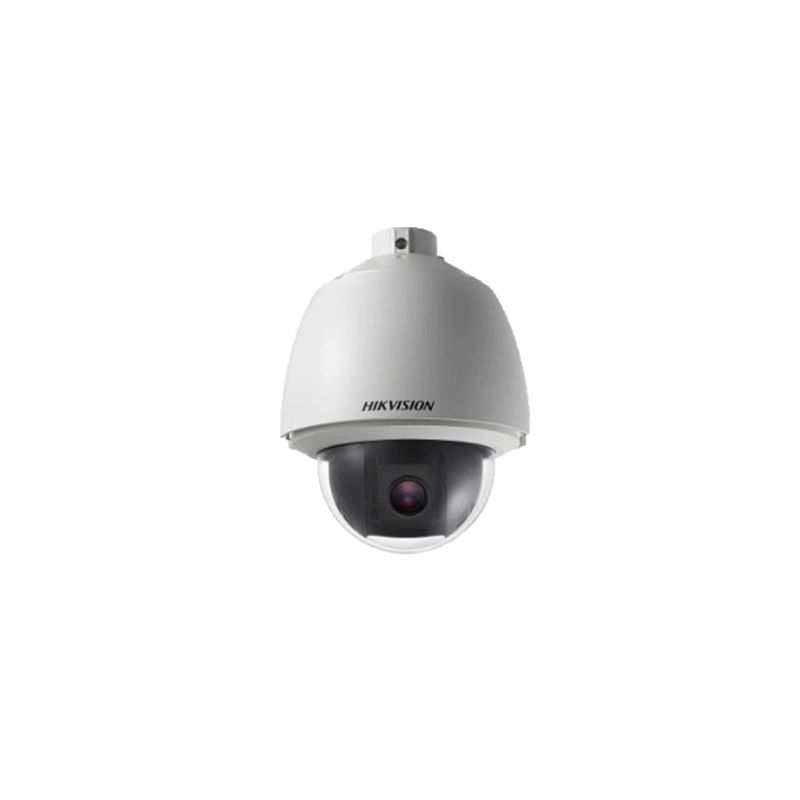

Quick Specs Figure 1 shows the appearance of DS-2DE5330W-AE3.
Table 1 shows the Quick Specs.
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.05 Lux @(F1.6, AGC ON)B/W: 0.01 Lux @(F1.6, AGC ON) |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s60Hz: 1/1 s to 1/30,000 s |
| Day & Night | IR Cut Filter |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Focus Mode | Auto/Semi-automatic/Manual |
| WDR | 120 dB WDR |
| Movement Range (Pan) | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 250°/s,Preset Speed: 300°/s |
| Movement Range (Tilt) | From -5°to 90°(Auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s,Preset Speed: 200°/s |
| Proportional Zoom | Support |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-Off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Status Display | Support |
| Preset Freezing | Support |
| Scheduled Task | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output |
| Material | ADC 12, PC+ABS, PC/PMMA |
| Dimensions | Φ183.4 mm×243 mm (Φ7.22″×9.57″) (Indoor)Φ245 mm×236 mm (Φ9.65×9.29″) (In-ceiling)” |
| Protection Level | 4000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Working Temperature | -10°C to 50°C (14°F to 122°F) |
