DS-2DF6A436X-AEL

$0.00

Model: DS-2DF6A436X-AEL – Hikvision 8MP/4MP/2MP PTZ
Details: 4MP 36 Network Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Out of stock

Add to compare
Add to wishlist
Add to quote
SKU: DS-2DF6A436X-AEL Categories: , ,
Description

DS-2DF6A436X-AEL Overview

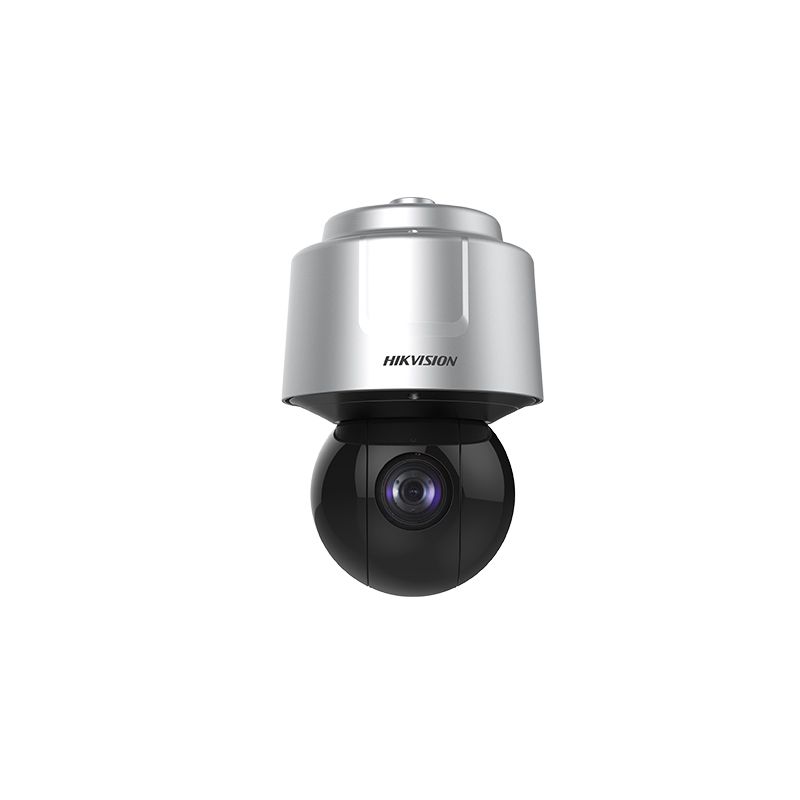

Quick Specs Figure 1 shows the appearance of DS-2DF6A436X-AEL.

Table 1 shows the Quick Specs.

Image Sensor 1/1.8″ progressive scan CMOS
Effective Pixels 2560(H)Ă—1440(V)
Signal System PAL/NTSC
Minimum Illumination Color: 0.002 Lux @(F1.5, AGC ON)B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC Auto/Manual
BLC ON/OFF
HLC Support
WDR 120dB
Shutter Time 50Hz: 1/1-1/30,000s60Hz: 1/1-1/30,000s
Day& Night ICR
Digital Zoom 16X
Privacy Mask 24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus Auto / Semi-automatic / Manual
Rapid Focus Yes
Focal Length 5.7 mm to 205.2 mm, 36Ă— optical zoom
Zoom Speed Approx.4.4s(Optical Wide-Tele)
Field of View Horizontal field of view: 59.8° to 2.0° (wide-tele)Vertical field of view: 33.6° to 1.1° (wide-tele)Diagonal field of view: 68.6° to 2.3° (wide-tele)
Minimum Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.5 to F4.5
Pan Range 360°endless
Pan Speed Configurable, from 0.1°/s to 350°/s, preset speed: 540°/s
Tilt Range -20°~90°(Auto Flip)
Tilt Speed Pan Manual Speed: 0.1° -240°/s, Pan Preset Speed: 400°/s
Proportional Zoom Yes
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory Support
Park Action Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display ON/OFF
Smart-tracking Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Alarm Input 7 Inputs
Alarm Output 2
Alarm Linkage Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Monitor Output 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input 1-ch audio input
Audio Output 1-ch audio output
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution 2560 Ă— 1440
Main Stream 50Hz: 25fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)60Hz: 30fps (2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)
Sub Stream 50Hz: 25fps(704Ă—576, 640×480,352Ă—288); 60Hz: 30fps(704Ă—480, 640×480,352Ă—240)
Third Stream 50Hz: 25fps (1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720, 704 Ă— 576, 640 Ă— 480, 352 Ă— 288) 60Hz: 30fps (1920 Ă— 1080, 1280 Ă— 960,1280 Ă— 720, 704 Ă— 480, 640 Ă— 480, 352 Ă— 240)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
ROI encoding Eight fixed region for each stream
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP,DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
Three-Stream Support
Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address)IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese,Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 24 VAC & Hi-PoE
Power Consumption 24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater)
Working Temperature/Humidity -40°C to 70°C (-40°F to 158°F)
Protection Level IP67, IK10, TVS 4,000V lightning protection, surge protection and voltage transient protection
Material Aluminum alloy
Dimensions Φ 231.1 mm Ă— 355.6 mm (Φ 9.10″ Ă— 14″)
