DS-2DF8225IX-AELW
Model: DS-2DF8225IX-AELW – Hikvision 8MP/4MP/2MP PTZ
Details: 2MP 25 Network IR Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-2DF8225IX-AELW Overview

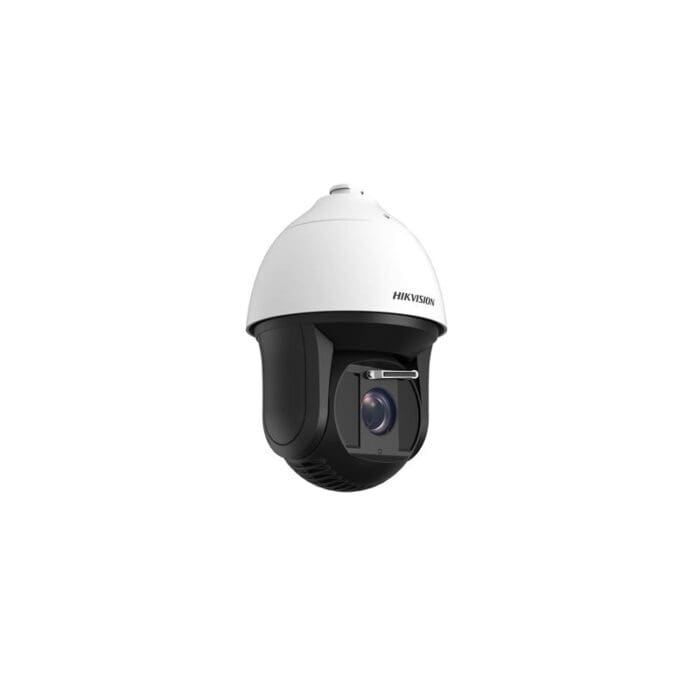

Quick Specs Figure 1 shows the appearance of DS-2DF8225IX-AELW.
Table 1 shows the Quick Specs.
| Image Sensor | 1/1.8″ progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.002 Lux @(F1.5, AGC ON)B/W: 0.0002 Lux @(F1.5, AGC ON)0 Lux with IR |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | 120dB |
| Shutter Time | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Mask | 24 programmable privacy masks; optional multiple colors and mosaics |
| Auto Focus | Auto / Semi-automatic / Manual |
| Rapid Focus | Yes |
| Focal Length | 5.7 mm to 142.5 mm, 25× Optical |
| Zoom Speed | Approx. 3.7 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view: 59.8° to 2.8° (wide-tele)Vertical field of view: 33.6° to 1.6° (wide-tele)Diagonal field of view: 68.6° to 3.2° (wide-tele) |
| Minimum Working Distance | 10-1500mm(Wide-Tele) |
| Aperture Range | F1.5~F3.4 |
| Pan Range | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s |
| Tilt Range | -20°~90°(Auto Flip) |
| Tilt Speed | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s |
| Proportional Zoom | Yes |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Smart-tracking | Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking |
| Wiper | Optional |
| Smart IR | Yes |
| IR Distance | 200m |
| Alarm Input | 7 Inputs |
| Alarm Output | 2 |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center,Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240) |
| Third Stream | 50Hz: 25fps(704×576, 640×480, 352×288); 60Hz: 30fps(704×480, 640×480, 352×240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG |
| ROI encoding | Eight fixed region for each stream |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Mode | OFF/Audio input/Audio output |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP,DHCP, PPPoE, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| Three-Stream | Support |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-BasedNetwork Access control, IP address Filtering |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+ |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Language | English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish,Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese,Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power Consumption | 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater)Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater) |
| Working Temperature/Humidity | -40°C to 70°C (-40°F to 158°F) |
| Protection Level | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection andVoltage Transient Protection |
| Dimensions | Φ 266.6 mm × 410 mm (Φ 10.50″ × 16.14″) |
