DS-2DF8836I5X-AELW

Original price was: $2,982.65.Current price is: $2,833.52.

Model: DS-2DF8836I5X-AELW – Hikvision 8MP/4MP/2MP PTZ
Details: 8MP 36 Network Laser Speed Dome
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-2DF8836I5X-AELW Categories: , ,
Description

DS-2DF8836I5X-AELW Overview

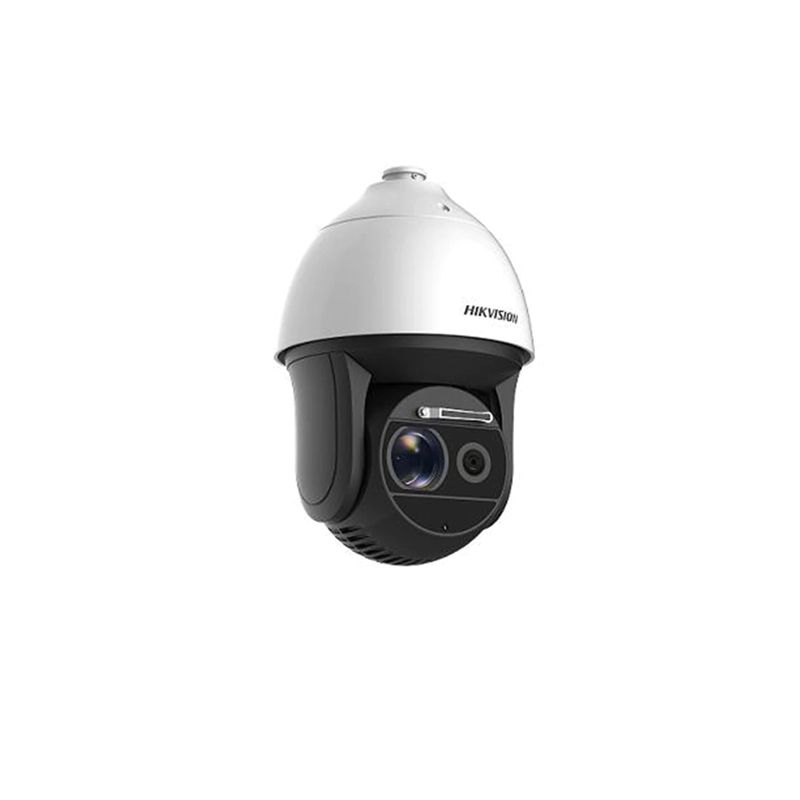

Quick Specs Figure 1 shows the appearance of DS-2DF8836I5X-AELW.

Table 1 shows the Quick Specs.

Image Sensor 2/3″ progressive scan CMOS
Horizontal Resolution 4096×2160
Signal System PAL/NTSC
Minimum Illumination Color: 0.005 Lux @(F1.5, AGC ON)B/W: 0.0005 Lux @(F1.5, AGC ON)0 Lux with IR
AGC Auto/Manual
BLC ON/OFF
HLC Support
Smart defog Support
WDR DWDR
Shutter Time 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night ICR
Digital Zoom 16X
Privacy Mask 24 programmable privacy masks
Auto Focus Auto / Semi-automatic / Manual
Focal Length 7.5 mm to 270 mm, 36Ă— Optical
Zoom Speed Approx.7.4s(Optical Wide-Tele)
Field of View Horizontal field of view: 56.1° to 2.0° (wide-tele)Vertical field of view: 33.4° to 1.1° (wide-tele)Diagonal field of view: 62.9° to 2.3° (wide-tele)
Minimum Working Distance 10-1500mm(Wide-Tele)
Aperture Range F1.55~F4.8
Pan Range 360°endless
Pan Speed Pan Manual Speed: 0.1°~210°/s, Pan Preset Speed: 280°/s
Tilt Range -20°~90°(Auto Flip)
Tilt Speed Tilt Manual Speed: 0.1°~150°/s, Tilt Preset Speed: 250°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Smart-tracking Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper Optional
Laser Distance 500 m
Alarm Input 7 Inputs
Alarm Output 2
Alarm Linkage Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP,Trigger Channel
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Main Stream 50Hz: 25fps (4096 Ă— 2160, 3840 Ă— 2160, 3072 Ă— 1728, 2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)60Hz: 30fps (4096 Ă— 2160, 3840 Ă— 2160, 3072 Ă— 1728, 2560 Ă— 1440, 2048 Ă— 1536, 1920 Ă— 1080, 1280 Ă— 960, 1280 Ă— 720)
Sub Stream 50Hz: 25fps(704Ă—576, 640×480,352Ă—288); 60Hz: 30fps(704Ă—480, 640×480,352Ă—240)
Third Stream 50Hz: 25fps(704Ă—576, 640Ă—480, 352Ă—288);60Hz: 30fps(704Ă—480, 640Ă—480, 352Ă—240)
Video Compression Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG
ROI encoding Eight fixed region for each stream
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Audio Mode OFF/Audio input/Audio output
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP,DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
Three-Stream Support
Storage Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures User authentication (ID and PW),Host authentication (MAC address)IP address filtering
Camera Control Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display Time: Week: Date, 6 formats on the Client
Client Support iVMS-4200
Web Browser IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language English
Power Supply 24 VAC & Hi-PoE
Power Consumption 24 VAC (Max. 60 W, including max. 18 W for laser and max. 12 W for heater)Hi-PoE (Max. 50 W, including max. 18 W for laser and max. 12 W for heater)
Working Temperature/Humidity -40°C to 70°C (-40°F to 158°F)
Protection Level IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection andVoltage Transient Protection
Dimensions Φ266.6(mm)×435(mm)
Mount Option Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
