DS-2TD6236-50H2L
Model: DS-2TD6236-50H2L – Hikvision Thermal Cameras
Details: Thermal + Optical Bi-spectrum Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD6236-50H2L Overview

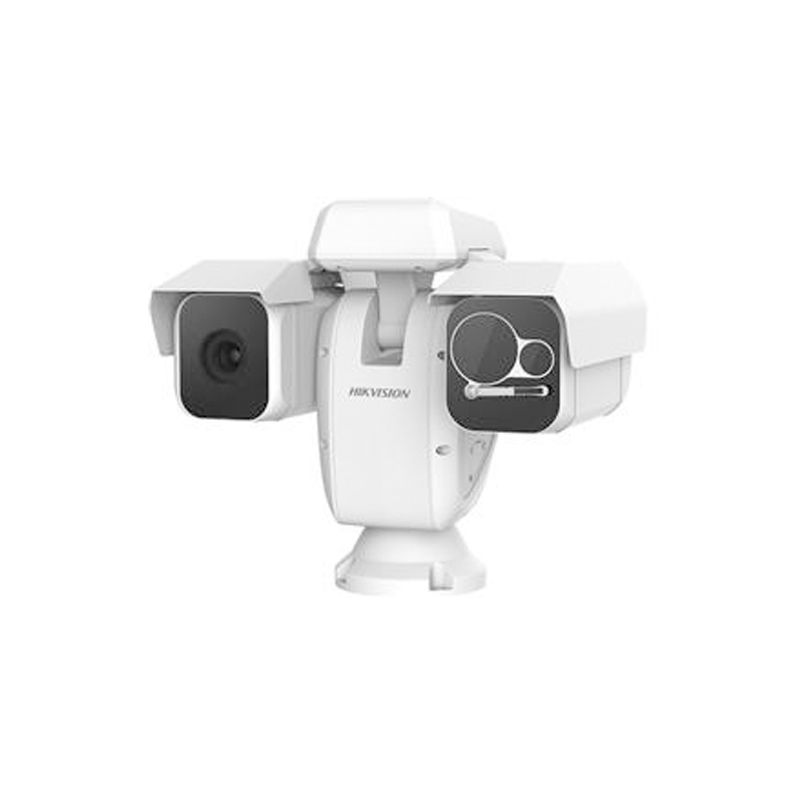

Quick Specs Figure 1 shows the appearance of DS-2TD6236-50H2L.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD6236-50H2L |
| Product Type | Thermal + Optical Bi-spectrum Network Positioning System |
| Thermal Module Resolution | 384 x 288 |
| Optical Module Resolution | 1920 x 1080 |
| Thermal Module Lens | 50 mm |
| Optical Module Lens | 6-264 mm |
| Zoom Capability | 44x Optical, 16x Digital |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Refresh Rate | 50 Hz/60 Hz |
| Field of View | Horizontal: 2�� to 60�� |
| Minimum Illumination | 0.0014 Lux (Optical), 0 Lux with IR |
| IR Range | Up to 500m |
| Network Protocols | IPv4/IPv6, HTTP, HTTPS, FTP, etc. |
| Video Compression | H.265/ H.264 |
| Audio Compression | G.711/G.722.1 |
| Operating Temperature | -40��C to 65��C (-40��F to 149��F) |
| Humidity | 95% or less (non-condensing) |
| Power Supply | 24 VAC, 50 Hz/60 Hz |
| Power Consumption | Max. 60W |
| Dimensions | 359 x 291 x 369 mm |
| Ingress Protection | IP66 |
