DS-2TD6236-75C2L
Model: DS-2TD6236-75C2L – Hikvision Thermal Cameras
Details: Thermal & Optical Bi-spectrum Network Positioning System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TD6236-75C2L Overview

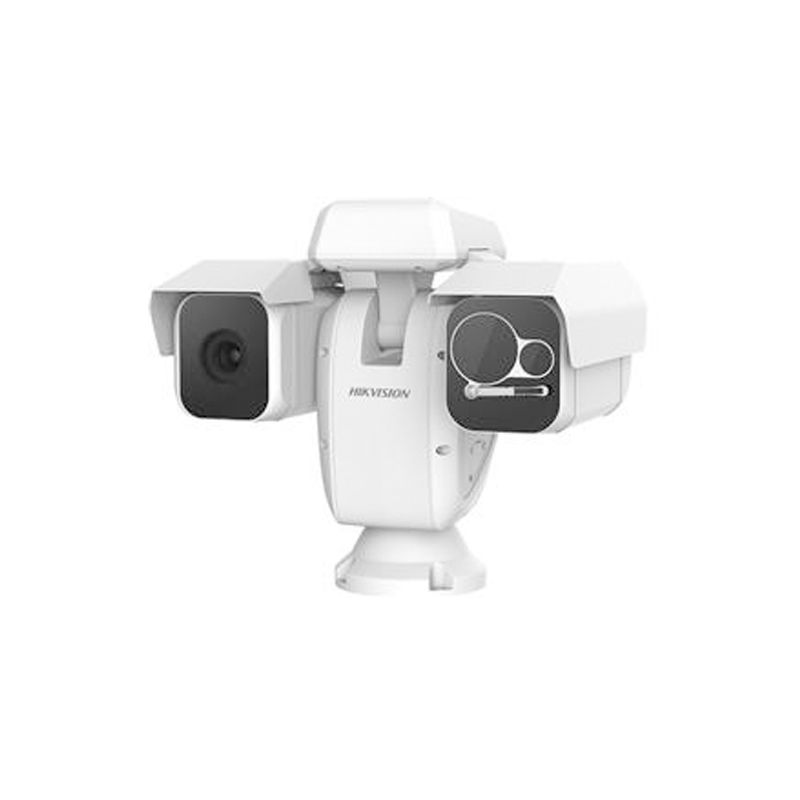

Quick Specs Figure 1 shows the appearance of DS-2TD6236-75C2L.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TD6236-75C2L |
| Product Type | Thermal & Optical Bi-spectrum Network Positioning System |
| Thermal Sensor Resolution | 640 �� 512 |
| Thermal Lens | 75 mm |
| Optical Sensor Resolution | 1920 �� 1080 |
| Optical Lens | 5.7 – 205.2 mm |
| Zoom Capability | 36�� Optical Zoom |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Field of View (Thermal) | 7.95�� �� 6.34�� |
| Field of View (Optical) | 59.8�� �� 33.6�� (Wide) to 2.0�� �� 1.1�� (Tele) |
| Minimum Illumination | Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON) |
| Digital Zoom | 16�� |
| Max. Resolution | 1920 �� 1080 |
| Frame Rate | 25/30 fps |
| Day/Night Switch | Automatic |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM |
| Power Supply | 24 V AC �� 25%, PoE (802.3af, class 3) |
| Operating Conditions | -40��C to 65��C (-40��F to 149��F), Humidity: 95% or less (non-condensing) |
| Ingress Protection | IP66 |
