Sold out
DS-2TX3636-15A
Model: DS-2TX3636-15A – Hikvision Thermal Cameras
Details: Thermal Smart Linkage Tracking System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TX3636-15A Overview

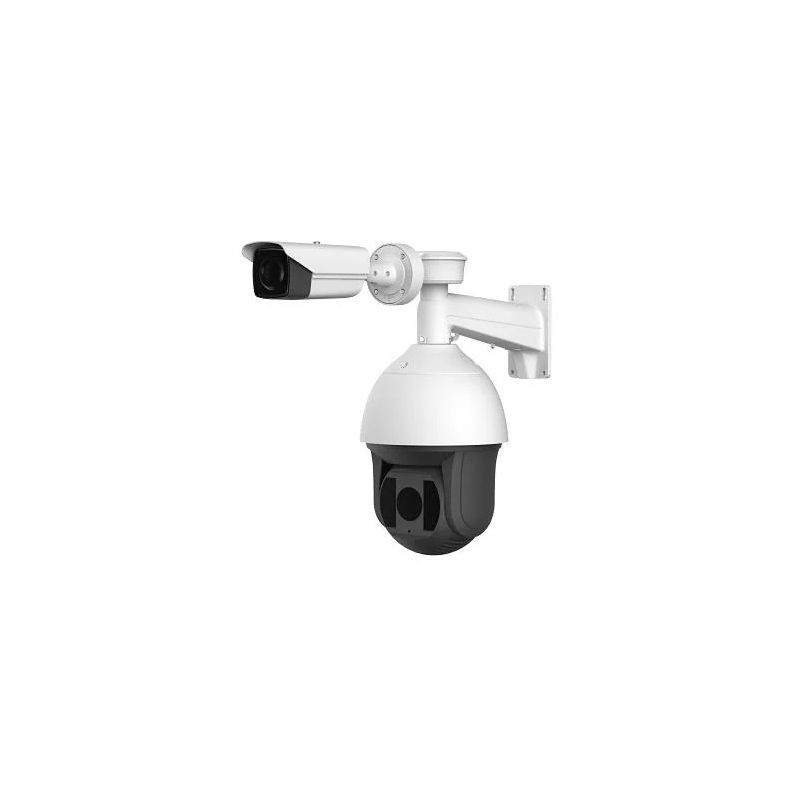

Quick Specs Figure 1 shows the appearance of DS-2TX3636-15A.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TX3636-15A |
| Technology | Thermal |
| Operating Temperature | -40��C to 60��C |
| Image Sensor | Uncooled Focal Plane Arrays |
| Resolution | 384 x 288 |
| Pixel Pitch | 17��m |
| NETD | < 40 mk (@ 25��C, F#=1.0) |
| Spectral Range | 8��m to 14��m |
| Lens (Focal Length) | 15 mm |
| Field of View (FOV) | 24�� �� 18�� |
| Image Enhancement | Electric Zoom |
| Frame Rate | 50 Hz |
| Focus Mode | Auto |
| Video Output | IP video stream |
| Video Compression | H.265/H.264/MJPEG |
| Storage | MicroSD/SDHC/SDXC |
| Alarm | 2 inputs, 2 outputs |
| Power Supply | 12 VDC/24 VAC/PoE |
| Power Consumption | 14 W |
| Ingress Protection | IP66 |
| Dimensions | 227 mm �� 333 mm �� 213 mm |
| Mounting Options | Ceiling, Wall |
