Sold out
DS-2TX3636-25P
Model: DS-2TX3636-25P – Hikvision Thermal Cameras
Details: Thermal Smart Linkage Tracking System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TX3636-25P Overview

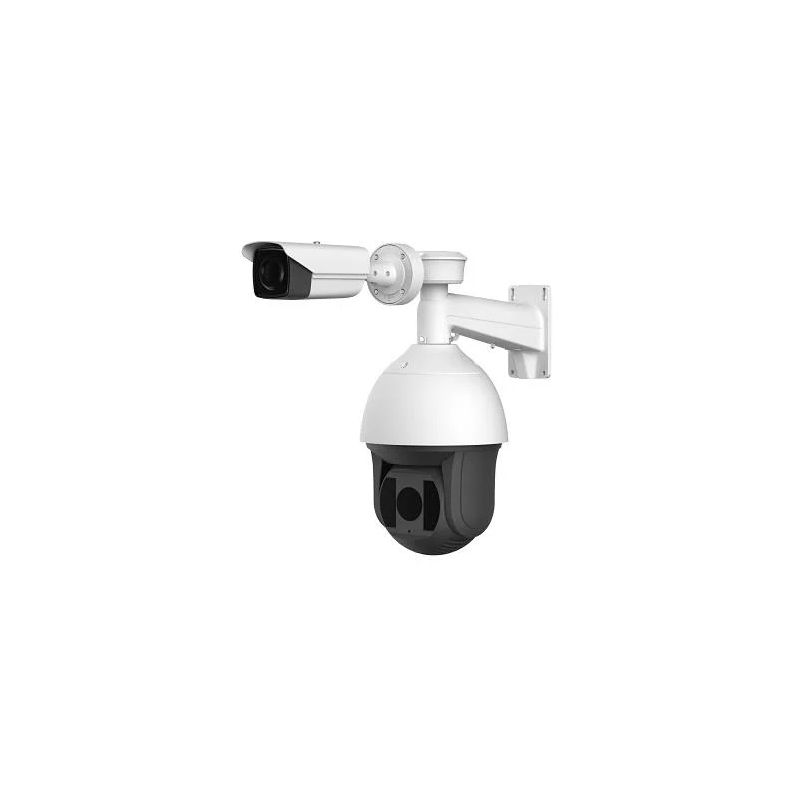

Quick Specs Figure 1 shows the appearance of DS-2TX3636-25P.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | DS-2TX3636-25P |
| System Type | Thermal Smart Linkage Tracking System |
| Thermal Module | Uncooled focal plane arrays |
| Resolution | 384 x 288 |
| Pixel Pitch | 17 ��m |
| NETD | < 50 mK (@25��C, F#=1.0) |
| Frame Rate | 50 Hz |
| Lens (Thermal) | 25 mm |
| F-number | F 1.0 |
| Field of View | 14.88�� x 11.19�� |
| Digital Zoom | 1x, 2x, 4x, 8x |
| Video Compression | H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Image Enhancement | AGC, 3D DNR, DDE |
| Color Palettes | Black hot, white hot, etc. |
| Smart Alarms | Temperature exception alarm, Line crossing |
| Interface | 1x RJ45 10 M/100 M Ethernet port |
| Power Supply | 12 VDC/2 A, PoE (802.3af) |
| Power Consumption | 12 W |
