DS-2TX3636-35P
Model: DS-2TX3636-35P – Hikvision Thermal Cameras
Details: Thermal Smart Linkage Tracking System
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-2TX3636-35P Overview

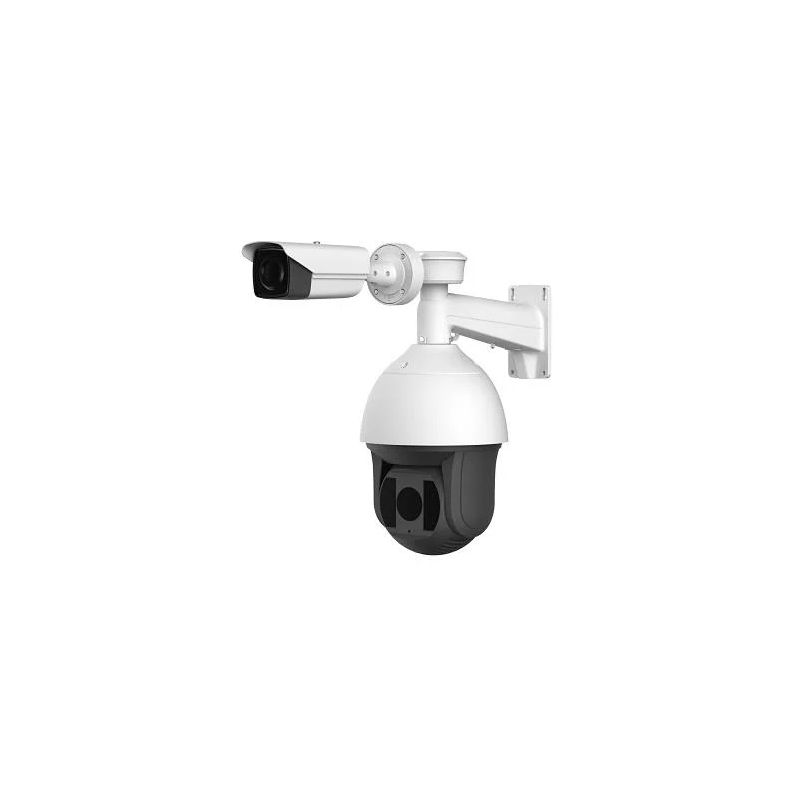

Quick Specs Figure 1 shows the appearance of DS-2TX3636-35P.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model Name | DS-2TX3636-35P |
| Product Type | Thermal Smart Linkage Tracking System |
| Image Sensor | Uncooled Focal Plane Arrays |
| Resolution | 640 �� 512 |
| Pixel Pitch | 17��m |
| NETD | < 40 mK (@25��C, F#=1.0) |
| Lens (Focal Length) | 35 mm |
| Aperture | F1.0 |
| Field of View | 17.7�� �� 14.2�� (H �� V) |
| Min. Focus Distance | 10 m |
| Spectral Range | 8 ��m to 14 ��m |
| Thermal Sensitivity | �� 50 mK |
| Detect Human (1.8 m) | 1,235 m |
| Detect Vehicle (4.0 �� 1.4 m) | 3,428 m |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SMTP |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Video Output Interface | 1.0V[p-p]/75��, NTSC (or PAL) |
| Working Temperature/Humidity | -40��C to 60��C / �� 95% |
