DS-7204HQHI-K1
Model: DS-7204HQHI-K1 – Hikvision TVI DVR
Details: 4-ch 1080p Lite@25fps(Real Time), 3MP/1080p@15fps (ch 1 only), Video output: VGA & HDMI Audio I/O: 1 In/ 1 Out Alarm I/O: N/A, 6 IP Cam Input, 1 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7204HQHI-K1 Overview

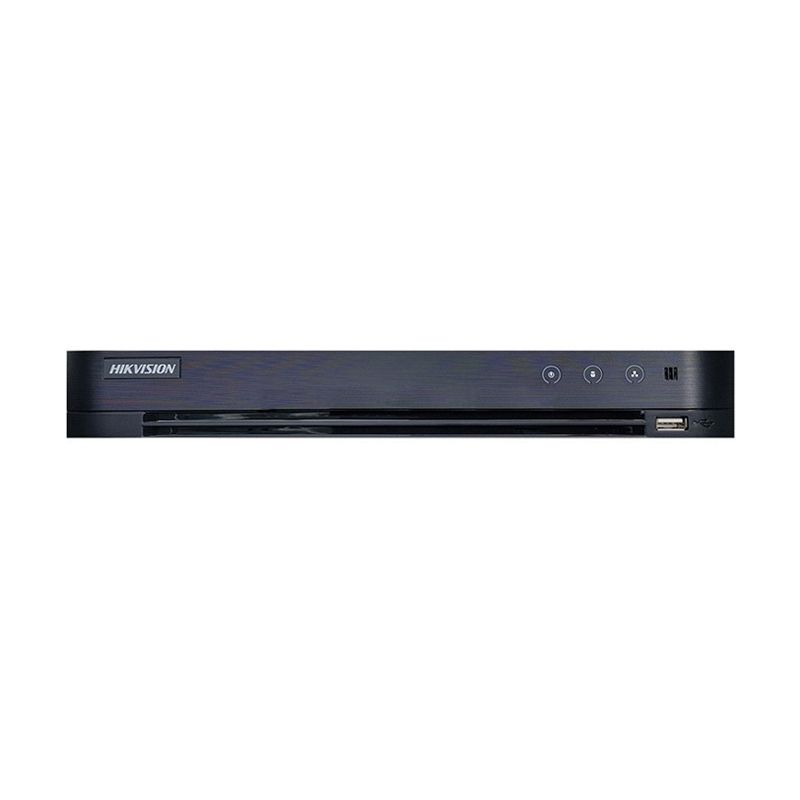

Quick Specs Figure 1 shows the appearance of DS-7204HQHI-K1.
Table 1 shows the Quick Specs.
| Audio Input | 1-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25Note: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1, for channel 1/2of DS-7208HQHI-K1, and for channel 1/2/3/4 of DS-7216HQHI-K1.Support AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30Support CVI input:1080p25, 1080p30, 720p25, 720p30Support CVBS input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps (N)For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fpsFor 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video / Video & Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Synchronous Playback | 4-ch |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10 TB capacity for each disk |
| Network Interface | |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | |
| Power Supply | 12V DC |
| Consumption | ≤ 6W(without hard disks) |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
