DS-7204HUHI-K1
Model: DS-7204HUHI-K1 – Hikvision TVI DVR
Details: 4-ch 1080p@25fps(Real-Time), 5MP@12fps, 4MP@15fps, 3MP@18fps, Video output: VGA & HDMI Audio I/O: 4 In/ 1 Out Alarm I/O: 4 In/ 1 Out, 8 IP Cam Input, 1 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-7204HUHI-K1 Overview

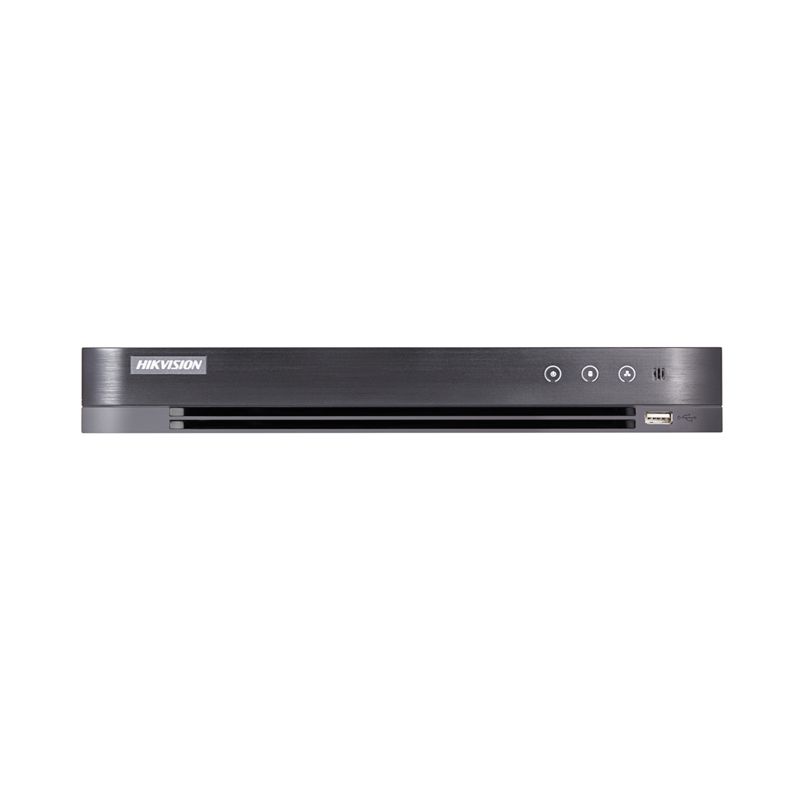

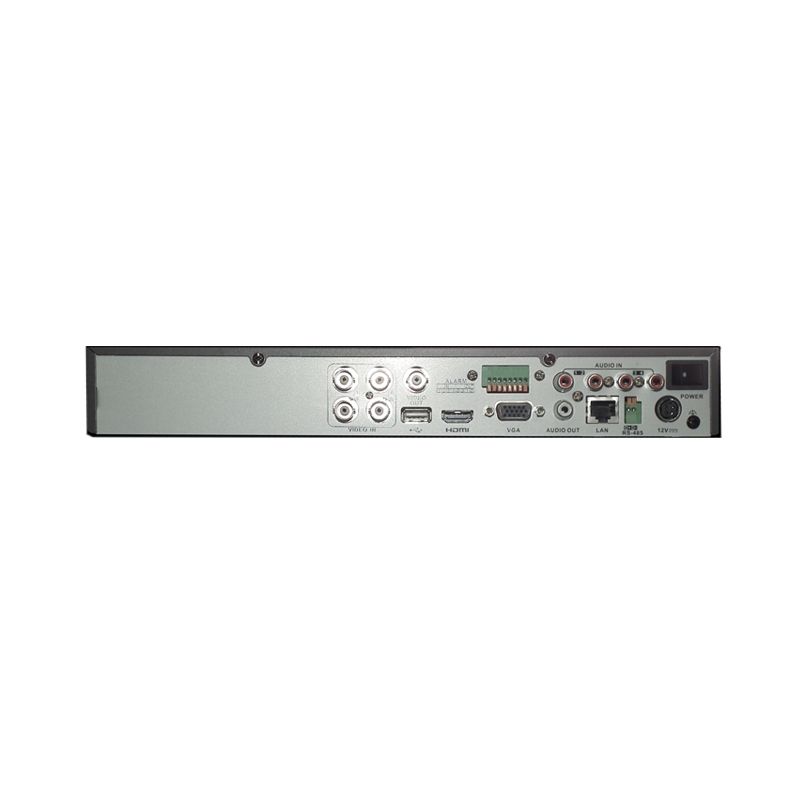

Quick Specs Figure 1 shows the appearance of DS-7204HUHI-K1.
Table 1 shows the Quick Specs.
| Audio Input | 4-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 4-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input:8MP, 5Mp,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz,Support AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30Support CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30Support CVBS input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| Frame Rate | Main stream:8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)*: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K1.Sub-stream:WD1/4CIF/CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-10 Mbps |
| Stream Type | Video/Video&Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Dual Stream | Support |
| Synchronous Playback | 4-ch |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 10 TB capacity for each disk |
| Network Interface | |
| USB Interface | 2 USB 2.0 Interfaces |
| Serial Interface | |
| Power Supply | 12V DC |
| Consumption | ≤ 10W(without hard disks) |
| Working Temperature | -10 oC to +55 oC (14 oF to 131 oF) |
| Working Humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
