DS-7216HQHI-K2

Original price was: $195.00.Current price is: $185.25.

Model: DS-7216HQHI-K2 – Hikvision TVI DVR
Details: 16-ch 1080p Lite@25fps(Real Time), 3MP/1080p@15fps (ch 1-4 only), Video output: VGA & HDMI Audio I/O: 1 In/ 1 Out Alarm I/O: N/A, 24 IP Cam Input, 2 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-7216HQHI-K2 Categories: , , ,
Description

DS-7216HQHI-K2 Overview

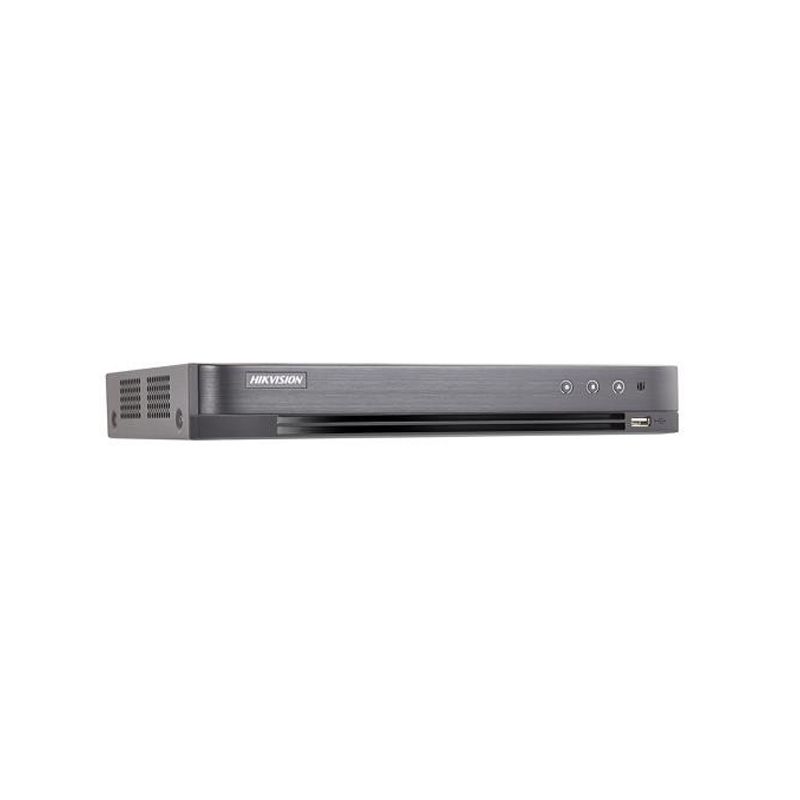

Quick Specs Figure 1 shows the appearance of DS-7216HQHI-K2.

Table 1 shows the Quick Specs.

Model DS-7216HQHI-K2
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF, When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Frame Rate Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Video Bit Rate 32 Kbps to 6 Mbps
Dual Stream Support
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bit Rate 64 Kbps
IP Video Input 8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input 16-ch BNC interface (1.0 Vp-p, 75Ω), supporting coaxitron connection
AHD Input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI Input 1080p25, 1080p30, 720p25, 720p30
CVBS Input PAL/NTSC
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous Playback 16-ch
HDTVI Input 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25,*: The 3 MP signal input is only available for channel 1/2 of DS-7208HQHI-K2, and for channel 1/2/3/4 of DS-7216HQHI-K2.,
VGA/HDMI Output VGA: 1-ch, 1920Ă—1080/60Hz, 1280Ă—1024/60Hz, 1280Ă—720/60Hz, 1024Ă—768/60Hz,HDMI: 1-ch, 4K (3840Ă—2160)/30Hz, 2K (2560Ă—1440)/60Hz, 1920Ă—1080/60Hz, 1280Ă—1024/60Hz, 1280Ă—720/60Hz, 1024Ă—768/60Hz
CVBS Output 1-ch, BNC (1.0 Vp-p, 75Ω)
Remote Connections 128
Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPâ„¢, HTTPS, ONVIF
Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
Alarm In/Out N/A
USB Interface Front panel: 1Ă—USB 2.0,Rear panel: 1Ă—USB 3.0
Serial Interface RS-485 (half-duplex)
Power Supply 12 VDC
Working Temperature -10°C to +55°C (+14°F to +131°F)
Working Humidity 10 to 90 %
Dimension (W Ă— D Ă— H) 380Ă—320Ă—48 mm (15.0Ă—12.6Ă—1.9 inch)
Consumption (Without HDD) ≤25 W
