DS-7316HQHI-K4
Model: DS-7316HQHI-K4 – Hikvision TVI DVR
Details: 16-ch 1080p Lite@25fps(Real Time), 3MP/1080p@15fps (ch 1-4 only), 1080p@15fps (ch 5-16 only), Video output: VGA & HDMI Audio I/O: 4 In/ 2 Out Alarm I/O: 16 In/ 4 Out, 24 IP Cam Input, 4 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7316HQHI-K4 Overview

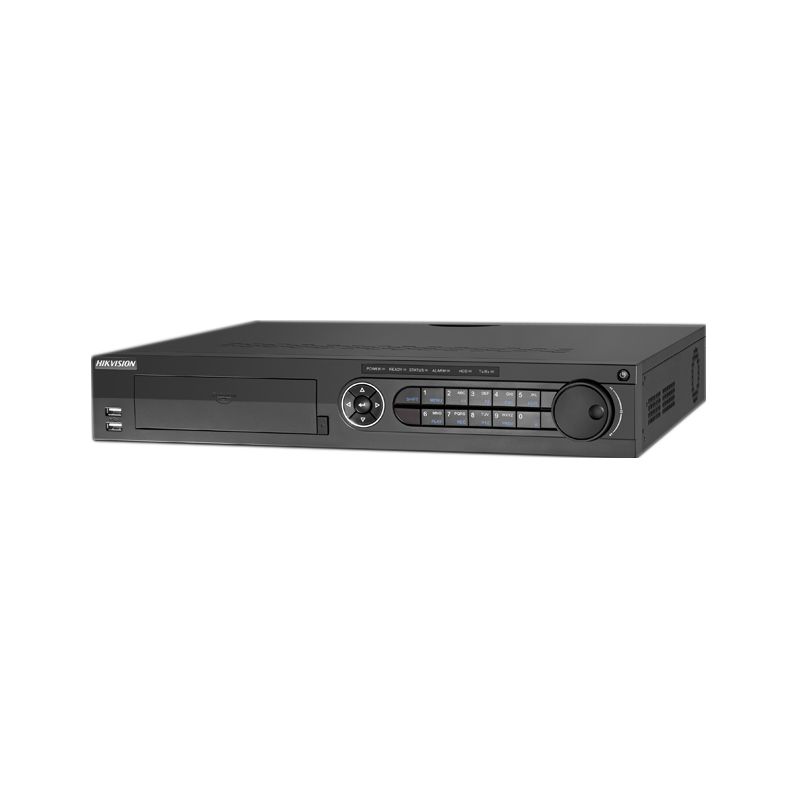

Quick Specs Figure 1 shows the appearance of DS-7316HQHI-K4.
Table 1 shows the Quick Specs.
| Audio Input | 4-ch |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Analog and HD-TVI video input | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
| Supported camera types | Support HDTVI input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60Note: The 3 MP signal input is only available for the first 4 channels of DS-7316HQHI-K4.Support AHD input: 1080p25, 1080p30, 720p25, 720p30Support HDCVI input:4 MP, 1080p25, 1080p30, 720p25, 720p30support CVBS input |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Audio Compression | G.711u |
| Audio Input Interface | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
| CVBS Output | 1-ch, BNC(1.0Vp-p,75Ω), resolution:PAL:704×576, NTSC:704×480 |
| HDMI/VGA Output | HDMI: 1-ch,4K(3840×2160)/30Hz,2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz,1280×720/60Hz,1024 ×768/60HzVGA:1-ch,2K(2560×1440)/60Hz,1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
| Recording resolution | When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF |
| Frame Rate | Main stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fpsFor 1080p stream access: 1080p@15fps; 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Stream Type | Video/Video & Audio |
| Audio Output | 1-ch RCA(Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF |
| Interface Type | 4 SATA Interfaces |
| Capacity | Up to 10 TB capacity for each disk |
| Network Interface | |
| USB Interface | 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
| Alarm Input | 16-ch |
| Alarm Output | 4-ch |
| Power Supply | 100 to 240 VAC |
| Consumption | ≤ 55W(without hard disks) |
| Working Temperature | -10 ℃ ~+55 ℃ (14 ℉ ~ 131 ℉) |
| Working Humidity | 10% ~ 90% |
| Dimensions | 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) |
