-5%
DS-7608NI-E2
Model: DS-7608NI-E2 – Hikvision NVR 7600 Series
Details: 80/80 Mbps In/Out Bandwidth, 720/1080p@30fps/ 3MP/ 5MP/ 6MP Max Resolution, Video output: VGA & HDMI + Audio I/O: 1 In/ 1 Out + Alarm I/O: 4 In/ 1 Out, 2 x 4TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7608NI-E2 Overview

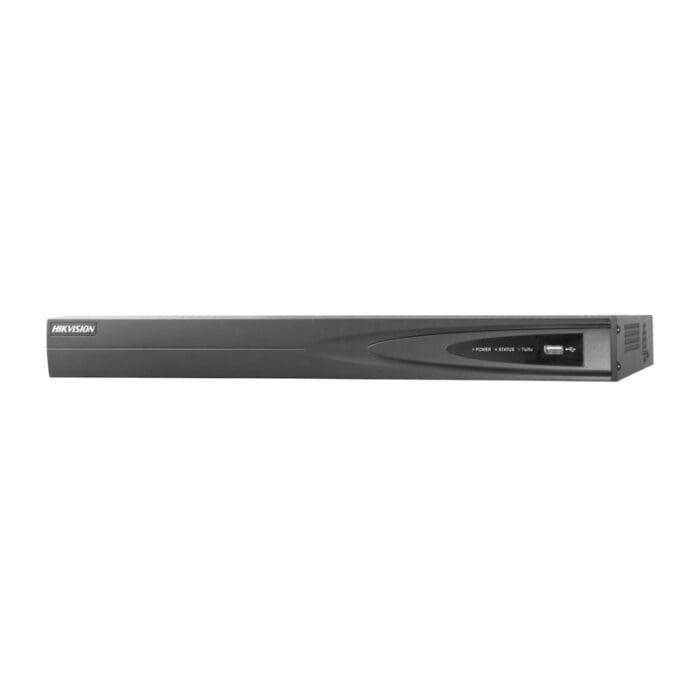

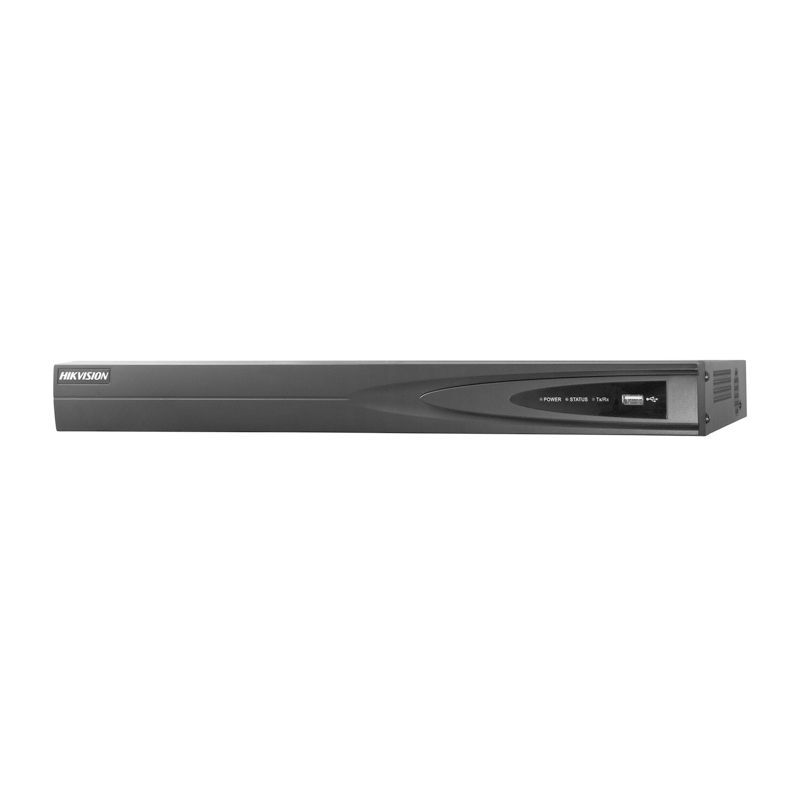

Quick Specs Figure 1 shows the appearance of DS-7608NI-E2.
Table 1 shows the Quick Specs.
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 8-ch |
| Remote connection | 128 |
| Incoming bandwidth | 80Mbps |
| Outgoing bandwidth | 80Mbps |
| HDMI/VGA output | 1-ch, resolution: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz |
| Recording Resolution | 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Frame Rate | Main stream: 50 fps (P) / 60 fps (N)Sub-stream: 50 fps (P) / 60 fps (N) |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 8-ch |
| Capability | 5-ch@1080P |
| Live view / Playback | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 4TB for each disk |
| Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| USB Interface | 1 × USB 2.0 and 1 × USB 3.0 |
| Alarm In | 4-ch(optional) |
| Alarm Out | 1-ch(optional) |
| Power Supply | 12V DC |
| Consumption (without hard disk and POE) | ≤ 10W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 380 chassis |
| Dimensions | 380 × 290 × 48mm (15.0 ×11.4 × 1.9 inch) |
