-5%
DS-7608NI-I2
Model: DS-7608NI-I2 – Hikvision NVR 7600 Series
Details: 80/256 Mbps In/Out Bandwidth, 1080p/ 4MP@30fps/ 4-ch 8MP@25fps/ 2-ch 12MP@20fps Max Resolution, Video output: VGA & HDMI + Audio I/O: 1 In/ 1 Out + Alarm I/O: 4 In/ 1 Out, 2 x 8TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-7608NI-I2 Overview

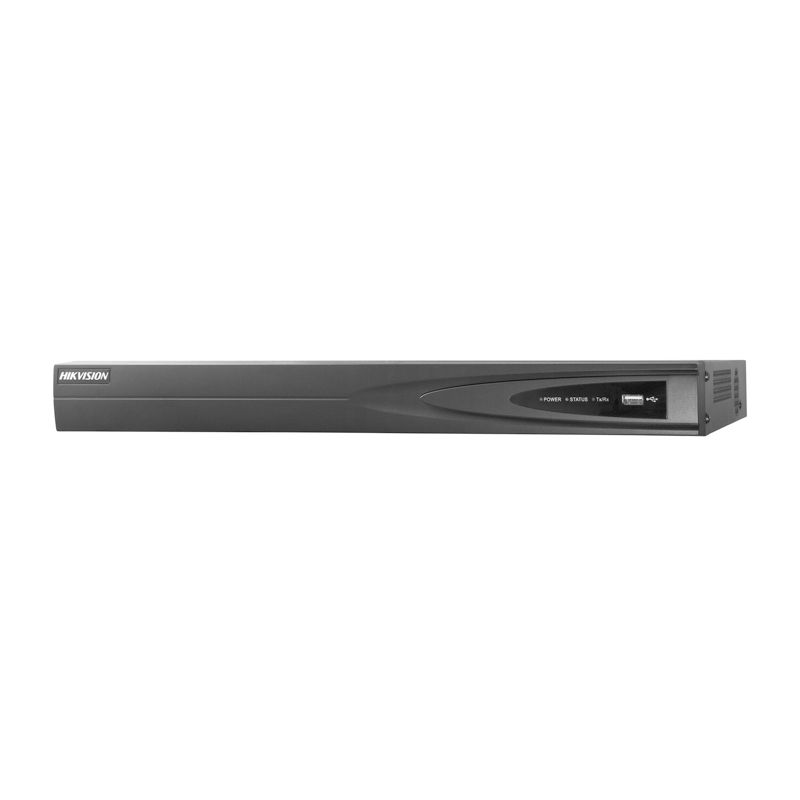

Quick Specs Figure 1 shows the appearance of DS-7608NI-I2.
Table 1 shows the Quick Specs.
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| IP video input | 16-ch |
| Remote connection | 128 |
| Incoming bandwidth | 160Mbps |
| Outgoing bandwidth | 256Mbps |
| HDMI Output | 1-ch, resolution: 4K(3840*2160)/60Hz, 4K(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Audio Output | 1-ch, RCA (Linear, 1kΩ) |
| Synchronous Playback | 16-ch |
| VGA Output | 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz |
| Capability | 4-ch@8MP,16-ch@1080P |
| Live view / Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| SATA | 2 SATA interfaces for 2 HDDs |
| Capacity | Up to 6TB capacity for each HDD |
| Network Interface | 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface |
| Serial Interface | RS-232 |
| USB Interface | Front panel: 1 × USB 2.0Rear panel: 1 × USB 3.0 |
| Alarm In | 4-ch |
| Alarm Out | 1-ch |
| Power Supply | 12 VDC |
| Consumption (without hard disk and POE) | ≤15 W |
| Working Temperature | -10 oC ~ +55 oC (+14 oF~ + 131 oF) |
| Working Humidity | 10 % ~ 90 % |
| Chassis | 380 chassis |
| Dimensions | 380 × 290 ×45 mm (15.0″× 11.4″ × 1.8″) |
Get more information
Do you have any question about the DS-7608NI-I2?
Contact us now via Live Chat or sales@metafinitivetech.com
