-5%

Click to enlarge

DS-8132HQHI-K8

Name: DS-8132HQHI-K8
SKU: DS-8132HQHI-K8
Availability: InStock

Original price was: $689.35.Current price is: $654.88.

Model: DS-8132HQHI-K8 – Hikvision TVI DVR
Details: 32-ch 1080p@25fps(Real-Time), 4MP Lite/3MP@15fps, Video output: VGA & 2*HDMI Audio I/O: 16 In/ 2 Out Alarm I/O: 16 In/ 8 Out, 48 IP Cam Input, 8 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to compare

Add to wishlist

SKU: DS-8132HQHI-K8 Categories: 32 Channel DVR, Digital Video Recorders, Video Surveillance

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

Description

DS-8132HQHI-K8 Overview

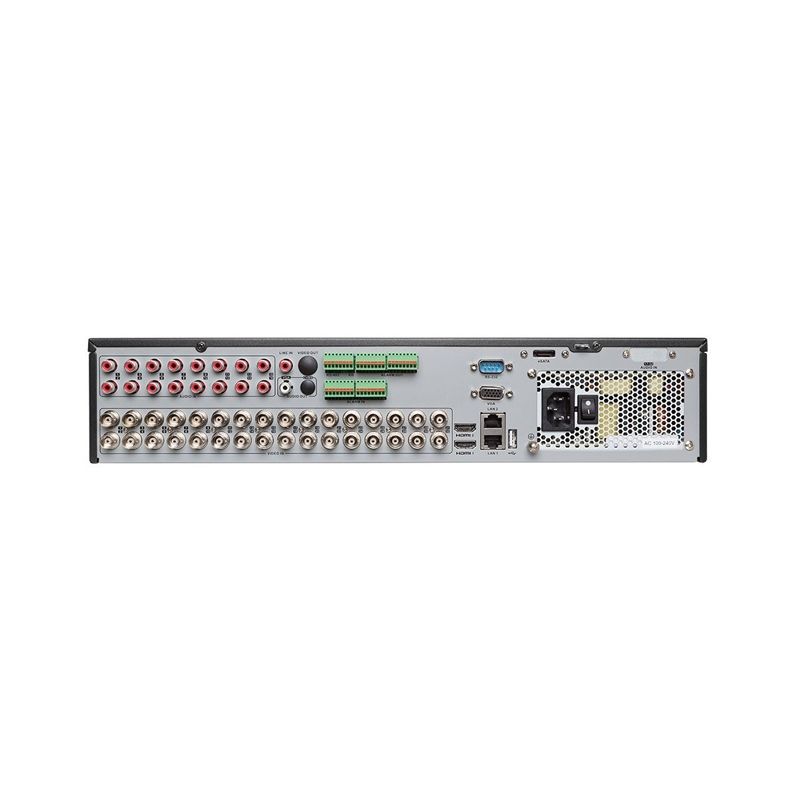

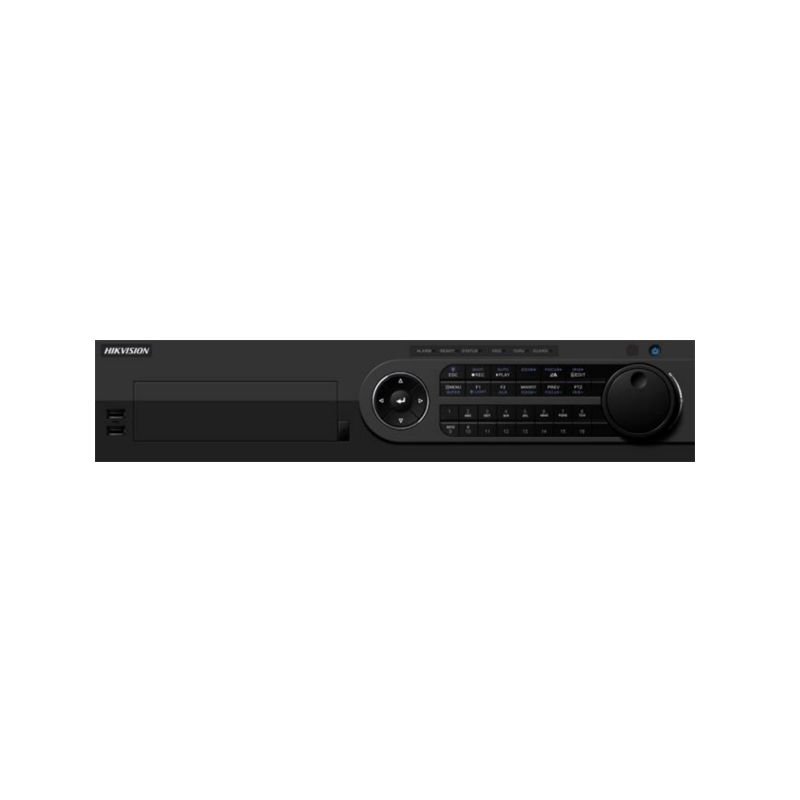

Quick Specs Figure 1 shows the appearance of DS-8132HQHI-K8.

Table 1 shows the Quick Specs.

Audio Input	16-ch
Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input	32-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types	Support HDTVI input: 4MP,3 MP, 1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60HzNote: The 3 MP signal input is only available for channel 1/2/3/4.Support AHD input: 4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30HzSupport CVI input: 1080p25, 1080p30, 720p25, 720p30support CVBS input
Audio Compression	G.711u
Audio Input Interface	16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio	1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
CVBS Output	1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704×576,NTSC:704×480
HDMI2 Output	1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output	1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution	When 1080p Lite mode not enabled:4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled:4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame Rate	Main stream:When 1080p Lite mode not enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p/720p@15fps; 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps(N)For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fpsFor 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate	32 Kbps-6 Mbps
Stream Type	Video/Video&Audio
Audio Output	2-ch, RCA (Linear, 1 kΩ)
Dual Stream	Support
Synchronous Playback	16-ch
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF
Interface Type	8 SATA Interfaces
Capacity	Up to 10 TB capacity for each disk
e-SATA Interface	1 eSATA interface
Network Interface
USB Interface	2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Alarm Input	16-ch
Alarm Output	8-ch
Power Supply	100 to 240 VAC
Consumption	≤ 45W(without hard disks)
Working Temperature	-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity	10% to 90%
Dimensions	440 × 470 × 90 mm (17.3 × 18.5 × 3.5 inch)

Get more information
Do you have any question about the DS-8132HQHI-K8?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices.

All items are ORIGINAL and GENUINE only: Item conditions are all “New Sealed”. All items are fully tested with working conditions by Hikvision certified engineer under customers’ permission.

Professional Technical Support: Metafinitivetech.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.

100% Money Back Guarantee: If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured.
