DS-8132HUHI-K8

Original price was: $1,306.00.Current price is: $1,240.70.

Model: DS-8132HUHI-K8 – Hikvision TVI DVR
Details: 32-ch 1080p@25fps(Real-Time), 8MP@8fps, 5MP@12fps, 4MP@15fps, 3MP@18fps, Video output: VGA & 2*HDMI Audio I/O: 16 In/ 2 Out Alarm I/O: 16 In/ 8 Out, 48 IP Cam Input, 8 x 10TB SATA
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: DS-8132HUHI-K8 Categories: , ,
Description

DS-8132HUHI-K8 Overview

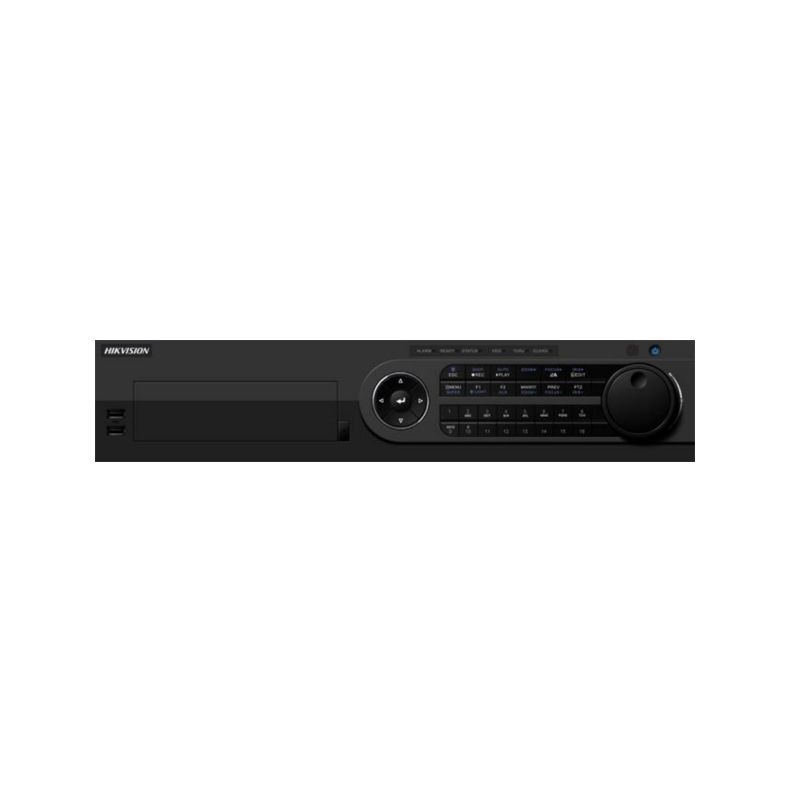

Quick Specs Figure 1 shows the appearance of DS-8132HUHI-K8.

Table 1 shows the Quick Specs.

Audio Input 16-ch
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog and HD-TVI video input 32-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30HzSupport CVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30support CVBS input
Audio Compression G.711u
Audio Input Interface 16-ch RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio 1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
HDMI2 Output 1-ch,4K(3840 Ă— 2160)/30Hz,2K(2560 Ă— 1440)/60Hz,1920Ă—1080/60Hz,1280 Ă— 1024/60Hz,1280 Ă— 720/60Hz, 1024 Ă— 768/60Hz
HDMI/VGA Output 1920 Ă— 1080 / 60 Hz,1280 Ă— 1024 / 60 Hz, 1280 Ă— 720 / 60 Hz, 1024 Ă— 768 / 60 Hz
Recording resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:8 MP@8fps/5 MP@12fps; 4 MP@15fps; 3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate 32 Kbps-10 Mbps
Stream Type Video/Video&Audio
Audio Output 2-ch, RCA (Linear, 1 kΩ)
Dual Stream Support
Playback Resolution 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback 16-ch
Remote connections 128
Network protocols TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS,ONVIF
Interface Type 8 SATA Interfaces
Capacity Up to 10 TB capacity for each disk
e-SATA Interface 1 eSATA interface
Array Type RAID0, RAID1, RAID5, RAID6, RAID10
Network Interface
USB Interface 2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface 1 RS-232 serial interface1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input 16-ch
Alarm Output 8-ch
Power Supply 100 to 240 VAC
Consumption ≤ 74W (without hard disks)
Working Temperature -10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity 10% to 90%
Dimensions 440 Ă— 470 Ă— 90 mm (17.3 Ă— 18.5 Ă— 3.5 inch)

Get more information
Do you have any question about the DS-8132HUHI-K8?
Contact us now via Live Chat or sales@metafinitivetech.com
