DS-KB6403-WIP
Model: DS-KB6403-WIP – Hikvision Video Intercom
Details: Wi-Fi Video Doorbell
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-KB6403-WIP Overview

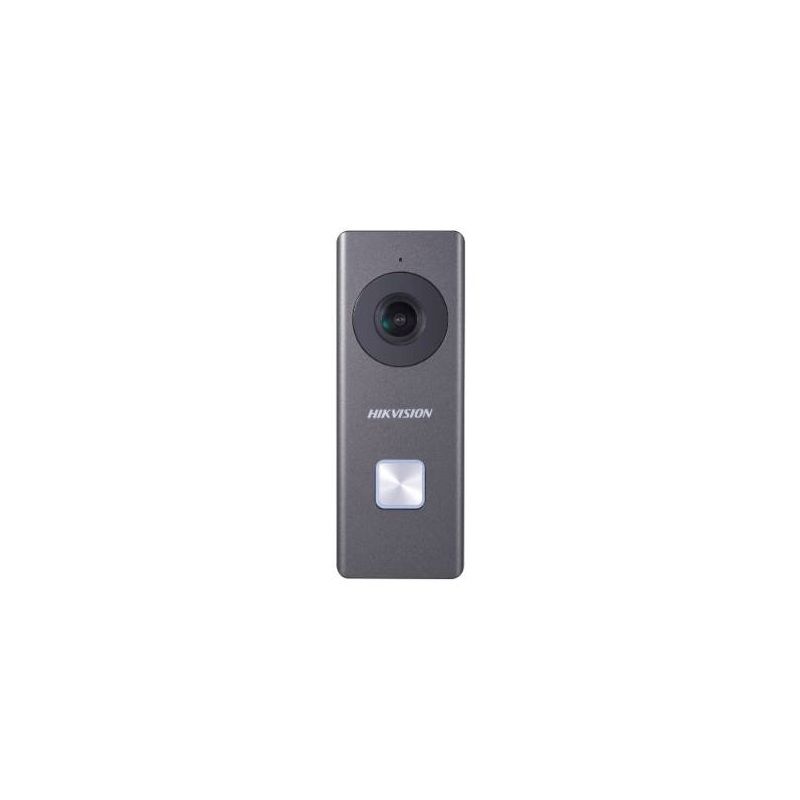

Quick Specs Figure 1 shows the appearance of DS-KB6403-WIP.
Table 1 shows the Quick Specs.
| Operation System | Embedded Linux Operation System |
| Processor | High-Performance Embedded SOC Processor |
| Image Sensor | CMOS 2MP HD Colorful Camera |
| Light sensitivity | Low Illumination |
| Lens | f1.96 mm, F 2.2 |
| Field of view | 180° (Horizontal), 96°(Vertical) |
| Video streaming | Dual StreamMain Stream: 1080P, Sub-Stream: VGA |
| Video Compression Standard | H.264 |
| Anti-flicker frequency | 50 Hz, 60 Hz |
| Wide dynamic range | WDR |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio streaming | Two-Way, Full Duplex |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Network Protocol | TCP/IP, RTSP |
| Interface number | 1 Wireless Interface (Wireless Network Card), Supporting 2.4 GHz |
| Light Supplement Mode | IR Supplement |
| Wavelength | 940 nm |
| Event | Motion Detection |
| TF Card (micro SD card) | Max. 128 G |
| Button | 1 Call Button, 1 Reset Button |
| Power Supply | 12 VDC |
| Power Consumption | Max. 0.6 A |
| Power frequency | 50 Hz to 60 Hz |
| Working Humidity | 10% to 90% |
| Working Temperature | -30° C to +50° C (-22° F to 122° F) |
| Dimensions(L×W×H) | 122.4 mm x 45.9 mm x 28.1 mm (4.82″ x 1.81″ x 1.11″) |
| IP Protection Level | IP 54 |
