DS-KD8002-VM
Model: DS-KD8002-VM – Hikvision Video Intercom
Details: Video Intercom Water Proof Metal Door Station
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
DS-KD8002-VM Overview

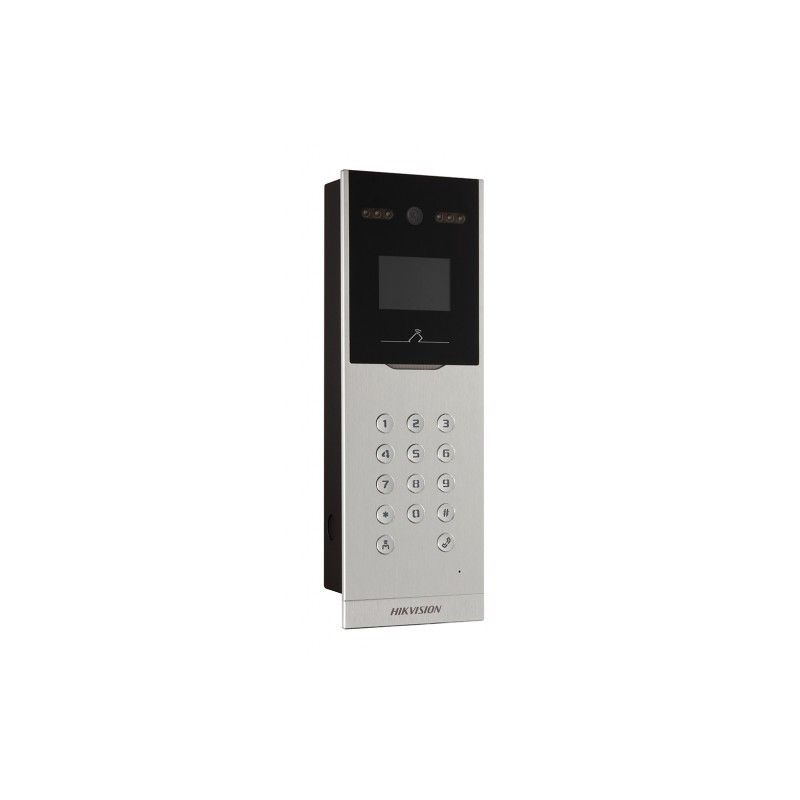

Quick Specs Figure 1 shows the appearance of DS-KD8002-VM.
Table 1 shows the Quick Specs.
| Operation System | Embedded Linux Operation System |
| Processor | High-Performance Embedded SOC Processor |
| Display Screen | 3.5-Inch Colorful TFT LCD |
| Display Resolution | 480 × 320 |
| Operation Method | Physical Keypad |
| Operation interface | LCD Display, Easy Menu |
| Camera | CMOS Low Illumination 1.3 MP HD Colorful Camera |
| Video Compression Standard | H.264 |
| Resolution | 1280 x 720 |
| Video frame rate | PAL: 25 fps, NTSC: 30 fps |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Network Protocol | TCP/IP, RTSP |
| Ethernet | 10/100/1000 Mbps Self-Adaptive Ethernet |
| Internal Card Reader | Built-in IC Card Reader |
| External Card Reader | Wiegand 26, Wiegand 34, or RS-485 IC Reader |
| Door Magnetic Detection | Detects Door Magnetic Status |
| Light Supplement Mode | Visible Light Supplement |
| Alarm Input | Door Magnetic Alarm, Tampering Alarm |
| I/O Output | 4 |
| I/O Input | 8 |
| RS-485 | 1 RS-485 Half-Duplex Port |
| Wiegand | 1 Wiegand Port for Accessing Wiegand IC Card Reader |
| USB | 1 USB 2.0, Supporting U-Disk |
| Network Interface | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
| Power Supply | 12 VDC |
| Power Consumption | ≤15 W |
| Material | Aluminum Alloy |
| Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Humidity | 10% to 90% |
| Working Temperature | -40° C to +60° C (-40° F to 140° F) |
| Dimensions (L × W × H) | 418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″) |
| IP Protection Level | IP65 |
