DS-KH8301-WT
Model: DS-KH8301-WT – Hikvision Video Intercom
Details: Video Intercom Indoor Station with 7-inch Touch Screen
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
DS-KH8301-WT Overview

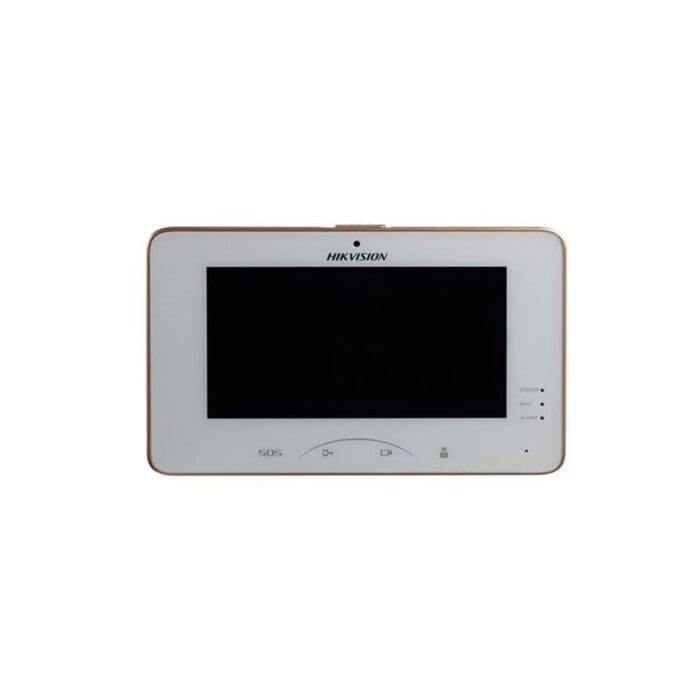

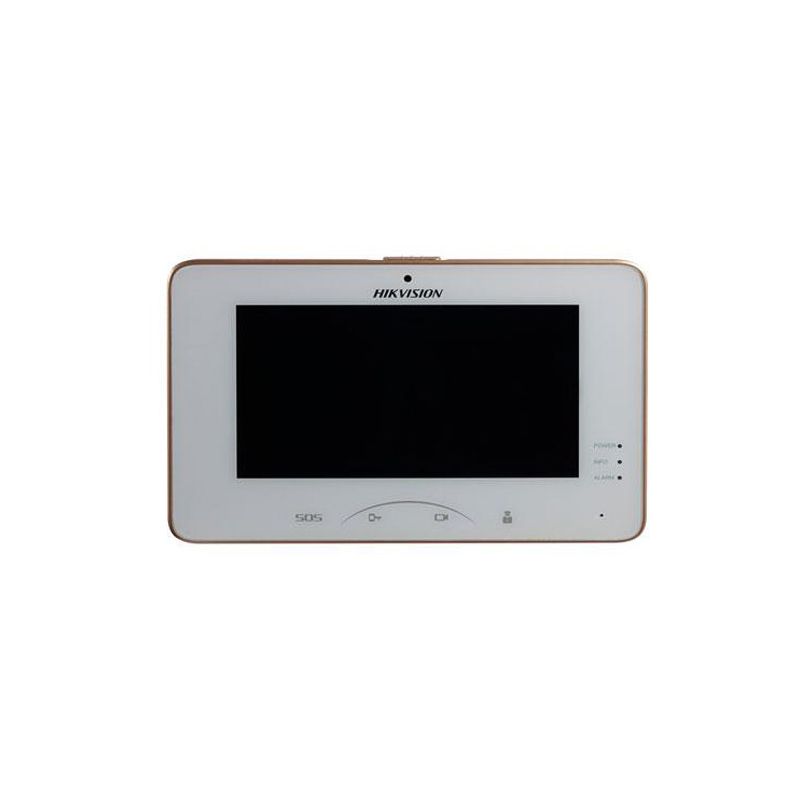

Quick Specs Figure 1 shows the appearance of DS-KH8301-WT.
Table 1 shows the Quick Specs.
| Operation System | Embedded Linux Operation System |
| Processor | High-Performance Embedded SOC Processor |
| Memory | 256M |
| Display Screen | 7-Inch Colorful TFT LCD |
| Display Resolution | 1024 × 600 |
| Operation Method | Capacitive Touch Screen, Touch Key |
| Operation interface | Flattened UI Operation Interface |
| Camera | CMOS 0.3 MP, Mechanical Switch |
| Video Compression Standard | H.264 |
| Resolution | 1024 x 600 |
| Video frame rate | PAL: 25 fps, NTSC: 30 fps |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Audio Compression Standard | G.711 U |
| Audio Compression Rate | 64 Kbps |
| Audio Quality | Noise Suppression and Echo Cancellation |
| Network Protocol | TCP/IP, RTSP |
| Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
| Alarm Input | 8-ch Alarm Input Sensor |
| I/O Output | 2 |
| RS-485 | 1 RS-485 Half-Duplex Port |
| TF Card (micro SD card) | TF Card, Support Max. 32GB |
| Network Interface | 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| Power Supply | 12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612) |
| Power Consumption | ≤10 W |
| Certification | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE |
| Working Humidity | 10% to 90% |
| Working Temperature | -10° C to + 55° C (14° F to 131° F) |
| Dimensions(L×W×H) | 217 mm × 142 mm × 26 mm (8.5″ × 5.6″ × 1.0″) |
